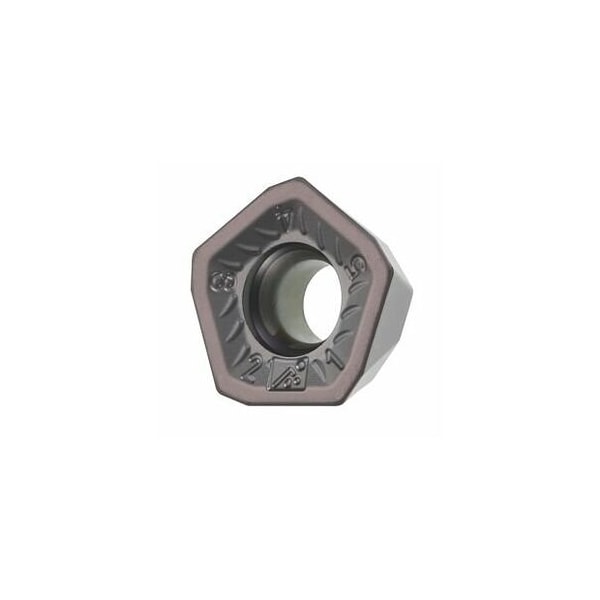

Inserts for Hi5 Milling Cutter, POMX 0704ZESR R, for Hard Machining
Mfr # 213131 HART
Zoro # G816120555
product price:Â $16.65
/eaKey Features
Insert Material
Carbide
Type
HART
Insert Thickness
4.76 mm
Grade
HB9715
Insert Type
POMX 0704ZESR R
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213131 HART
- Zoro #
- G816120555
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Insert Thickness
- 4.76 mm
- Min. Cutting Depth
- 0.16 mm
Details
- Item
- Indexable insert for milling
- Insert Material
- Carbide
- Type
- HART
- Grade
- HB9715
- Insert Type
- POMX 0704ZESR R
- Number of Changes/Inserts
- 5
- Indexable insert clearance angle
- 15°
- Correction Factor
- 2.5
- Feed Per Tooth
- 0.5 mm
Description
Version: Flat cutting edge length: 1.5 mm- for high surface quality. Note: Standard application values for ae = 0.5 ... 1xD / ap max = 1.4 mm. Programming radius at ap max: 3.61 mm Feed fz per tooth: 0.5 mm
