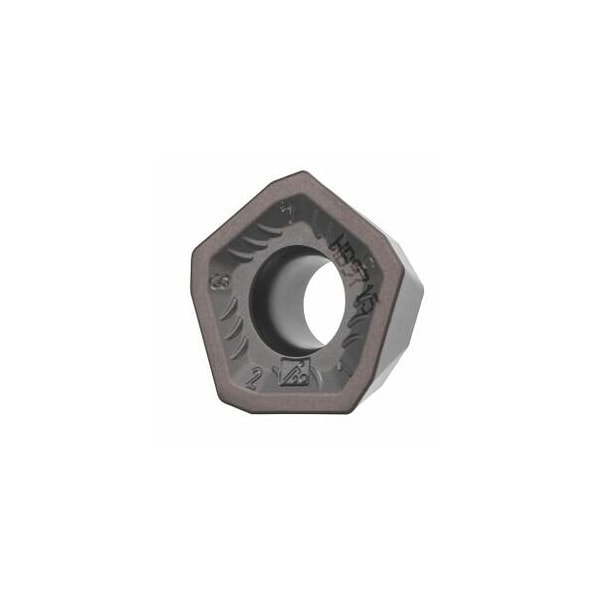

Inserts for Hi5 Milling Cutter, POMX 10T5ZESR R, for Hard Machining
Mfr # 213178 HART
Zoro # G416120481
product price:Â
$
19.49
/ea
Key Features
Insert Material
Carbide
Insert Type
POMX 10T5ZESR R
Insert Thickness
5.9 mm
Grade
HB9715
Type
HART
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213178 HART
- Zoro #
- G416120481
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Insert Thickness
- 5.9 mm
- Min. Cutting Depth
- 0.2 mm
Details
- Item
- Indexable insert for milling
- Insert Material
- Carbide
- Insert Type
- POMX 10T5ZESR R
- Grade
- HB9715
- Type
- HART
- Correction Factor
- 2.5
- Feed Per Tooth
- 0.6 mm
- Indexable insert clearance angle
- 15°
- Number of Changes/Inserts
- 5
Description
Version: Sturdy insert version thickness = 5.9 mm. Positive geometry for high feed rates. Flat cutting edge length: 2 mm for high surface quality. Special cost-effectiveness due to 5 cutting edges. Note: Standard application values for ae = 0.5 ... 1xD / ap max = 2.2 mm. Programming radius at ap max: 4.8 mm Feed fz per tooth: 0.6 mm
