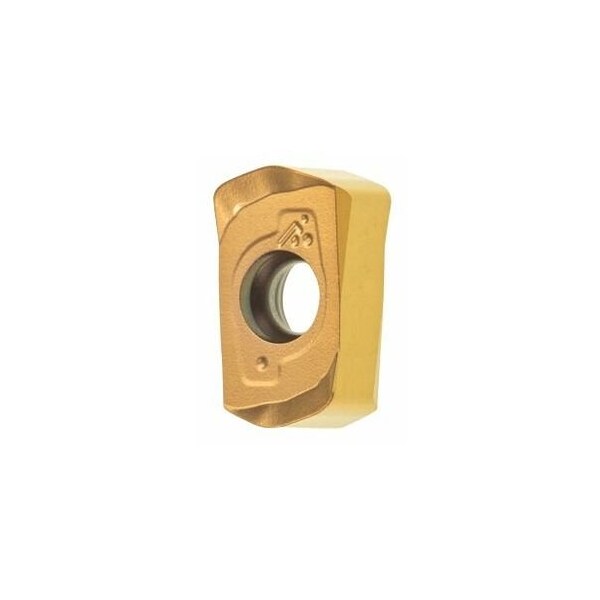

Inserts for Power Q Mini, ANGX10T308ZEER, General Purpose
Mfr # 213075 UNI
Zoro # G216120711
product price:Â
$
19.35
/ea
Key Features
Insert Material
Carbide
Corner Radius
0,8 mm
Grade
HB9540
Insert Thickness
3.97 mm
Type
UNI
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213075 UNI
- Zoro #
- G216120711
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Corner Radius
- 0,8 mm
- Insert Thickness
- 3.97 mm
- Min. Cutting Depth
- 0.15 mm
- Max. Cutting Depth
- 1 mm
Details
- Item
- Indexable insert for milling
- Insert Material
- Carbide
- Grade
- HB9540
- Type
- UNI
- Number of Changes/Inserts
- 4
- Insert Type
- ANGX 10T308ZEER
- Indexable insert clearance angle
- 0°
- Correction Factor
- 2.5
Description
Version: Double-sided 2-edge inserts. High-performance substrates and innovative cutter geometries provides the best possible production results. Note: Standard application values for ae = 0.5...1xD/ap max. Programming radius at ap max: 1.6 mm Insert thickness S: 3.97 mm
