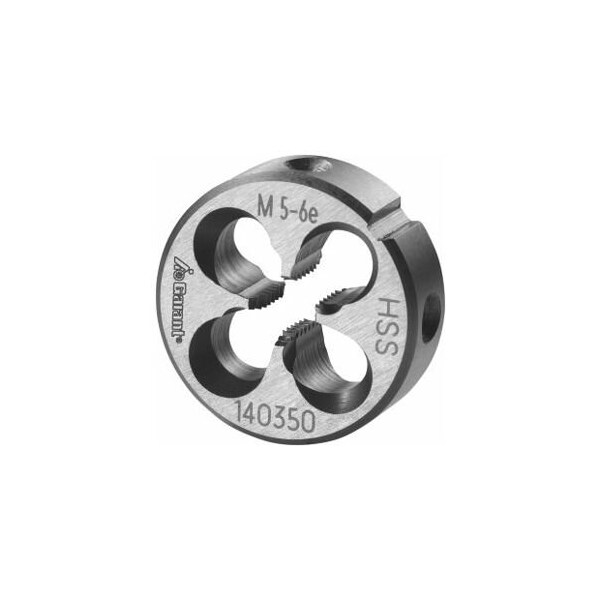

M5X0.8 HSS Round Die, Closed/Pre-Slit Form
Mfr # 140350 M5
Zoro # G514391561
product price:Â $51.99
/eaKey Features
Thread Type
M
Die Material
HSS
Standards
EN 22568
Pitch
0.8 mm
Size
M5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 140350 M5
- Zoro #
- G514391561
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Die Thread Size
- M5X0.8
- Size
- M5 mm
Details
- Item
- Die
- Thread Type
- M
- Die Material
- HSS
- Standards
- EN 22568
- Pitch
- 0.8 mm
Description
Closed, pre-slit form. M3 with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Tolerance zone 6e = with undersize approx. 0.03 0.04 mm. For tolerance class medium, when studs are provided with a galvanic protection coating. Cutting direction: right-hand Tolerance class: DIN 13 6e Pitch: 0.8 mm External Dia. 20 mm Height: 7 mm
