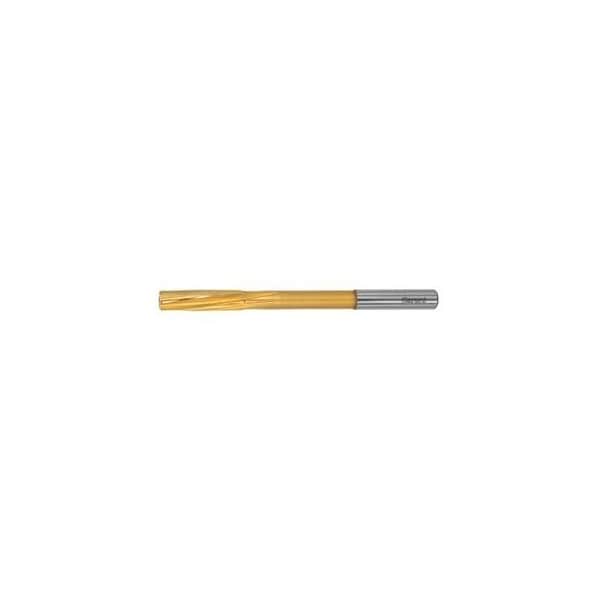

Machine Reamer, H7 Tolerance, TiN Coated, 7 mm
Mfr # 163500 7
Zoro # G214483238
product price: $87.15
/ea
Free Shipping & Returns
Key Features
Material - Machining
HSS E
Shank Type - Machining
Plain shank with h9
Finish - Machining
TiN
Primary Material Application
for through holes
Overall Length
109 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
163500 7
Zoro #
G214483238
UPC #
-
Country of Origin
Germany
Dimensions
Size - Decimal
7 mm
Overall Length
109 mm
Shank Dia.
7.1 mm
Details
Item
Phillips bit
Material - Machining
HSS E
Shank Type - Machining
Plain shank with h9
Finish - Machining
TiN
Primary Material Application
for through holes
Number of Flutes
6
Description
With long flutes and left-hand helix. Even number of teeth with irregular spacing. Application: For reaming through holes, as the swarf is evacuated in the direction of cutting. Application for type of drilling: for through holes Tolerance: H7 Number of cutting edges Z: 6 Tolerance: H7 Flute length Lc: 31 mm Overhang L1: 69 mm Overall length L: 109 mm Number of cutting edges Z: 6 Shank Dia. Ds: 7.1 mm
