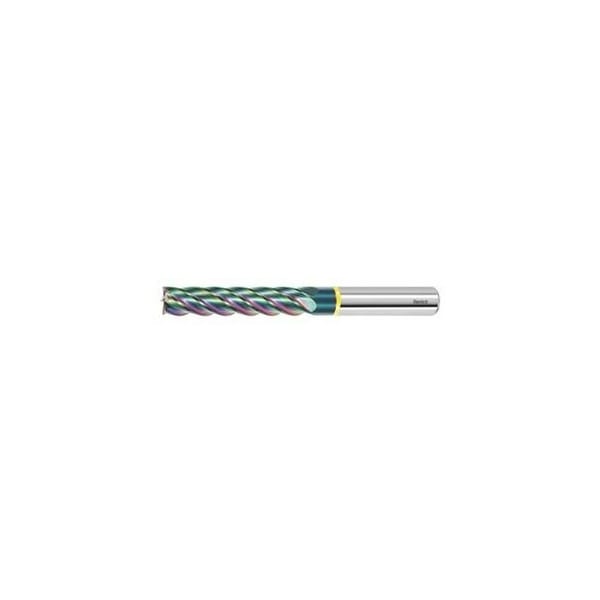

Master Alu Solid Carbide End Mill, DLC Coated, 16 mm

For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Note: Order the uncoated version using No. 203209. Tolerance nominal Dia. h6 No. of teeth Z: 5 Helix angle: 38 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 5 Flute length Lc: 80 mm Overhang length L1 incl. recess: 88 mm Recess Dia. D1: 15.5 mm Overall length L: 134 mm Shank Dia. Ds: 16 mm
