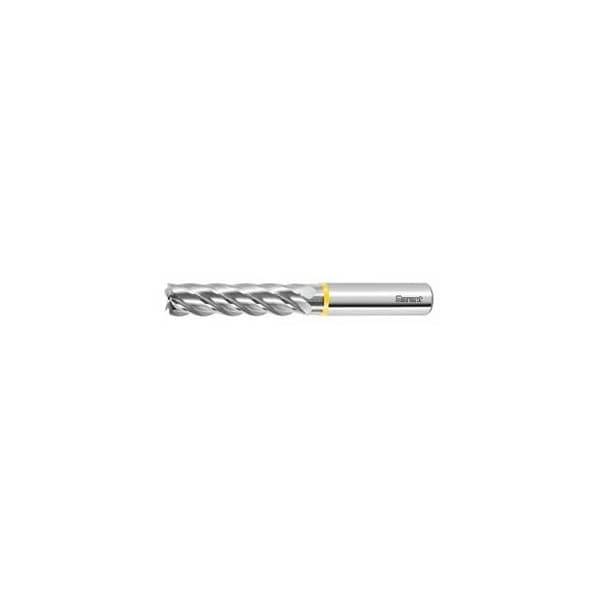

Master Alu Solid Carbide End Mill, Uncoated, 16 mm
Mfr # 203208 16
Zoro # G814381149
product price:Â $314.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
16 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 203208 16
- Zoro #
- G814381149
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 16 mm
Description
For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Tolerance nominal Dia. h6 No. of teeth Z: 5 Helix angle: 38 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 5 Flute length Lc: 64 mm Overhang length L1 incl. recess: 72 mm Recess Dia. D1: 15.5 mm Overall length L: 125 mm Shank Dia. Ds: 16 mm
