Shop GARANT

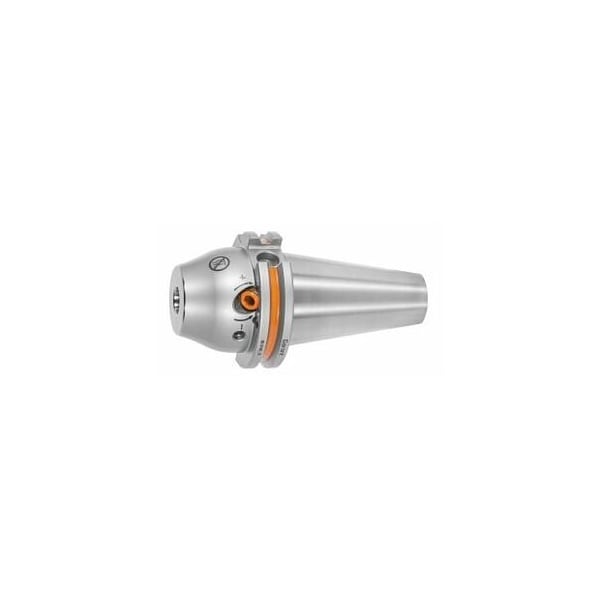

Master Chuck Hydraulic Chuck, SK 40 short, Clamping Diameter: 20mm

  • Mfr # 302195 20

  • Zoro # G314773963

product price:  $550.99
/ea
Free Shipping & Returns

Key Features

Dia.
38 mm
Projection
64.5 mm
Concentricity
≤ 3 µm
Outside Dia.
49 mm
Clamping Dia.
20 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
302195 20
Zoro #
G314773963
UPC #
-
Country of Origin
Germany

Dimensions

Dia.
38 mm
Outside Dia.
49 mm
Clamping Dia.
20 mm
Taper Size
SK40

Details

Projection
64.5 mm
Concentricity
≤ 3 µm
Coolant Through
Yes
Shape
ADB
Item
Hydraulic chuck
Balance Quality
G 2.5 at 25,000 rpm
Standards
ISO 7388-1
Balluffchip Bore
Yes

Description

Particularly suitable for highly dynamic milling applications. optimized outer contour using FEM finite element method ->, robustness thanks to max. rigidity, longer tool life, higher metal removal rate, suitable for all machining strategies. With RFID/Balluffchip bore. Axial length adjustment, adjustment travel 10 mm. Reducing adapters can be used. Resistant to temperatures up to 170 DegC for 4 hours. Allows for up to 10x more clamping operations compared with a standard hydraulic chuck. Very low tightening torque for the clamping screw - easy handling. Patented new hydraulic clamping system - reliable, durable premium concentricity. Application: Universally designed for roughing and finishing work. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Pull studs AB No. 308600 308806, AB pull stud wrenches No. 308820 / 308835, Reducing sleeves No. 302135 302187. Clamping Dia D1: 20 mm Overhang dimension A: 64.5 mm Dia D2: 38 mm External Dia D: 49 mm L3: 41 mm
