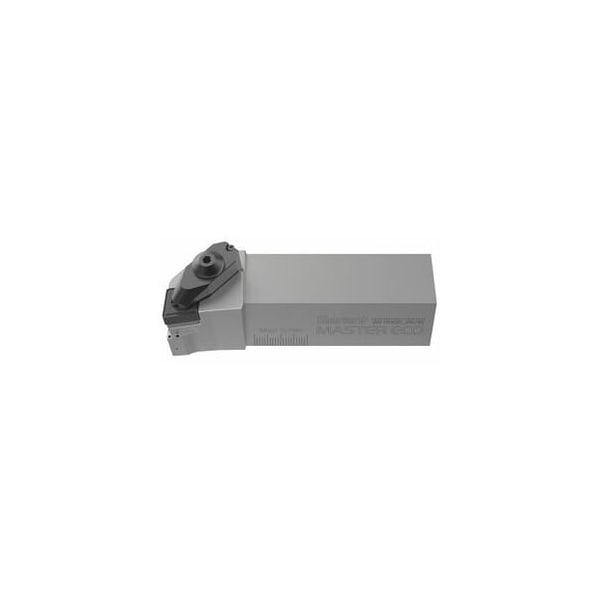

Master Eco Indexable Turning Toolholder, DCLNR2525H12, for CN 4 Inserts, Right-Hand
Mfr # 250002 25/12
Zoro # G014825207
product price:Â
$
246.99
/ea
Free Shipping & Returns
Key Features
Insert Size
4
Inscribed Circle (In.)
1/2 in
Head Length
30 mm
Setting Angle
95 Degrees
Overall Length
100 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 250002 25/12
- Zoro #
- G014825207
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Insert Size
- 4
- Head Length
- 30 mm
- Overall Length
- 100 mm
- Size
- 25/12 mm
- Insert size
- 12 mm
- Shank Dia.
- 25 mm
- Functional Width
- 32 mm
Details
- Inscribed Circle (In.)
- 1/2 in
- Setting Angle
- 95 Degrees
- Series
- Master Eco
- Insert Shape
- Diamond
- Type
- Screw-on toolholder
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holder No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: DCLNR/L 2525H12 suitable indexable insert: CN.. 1204.. Functional width L4: 32 mm Head length L1: 30 mm Overall length L: 100 mm Shim: 259031 49
