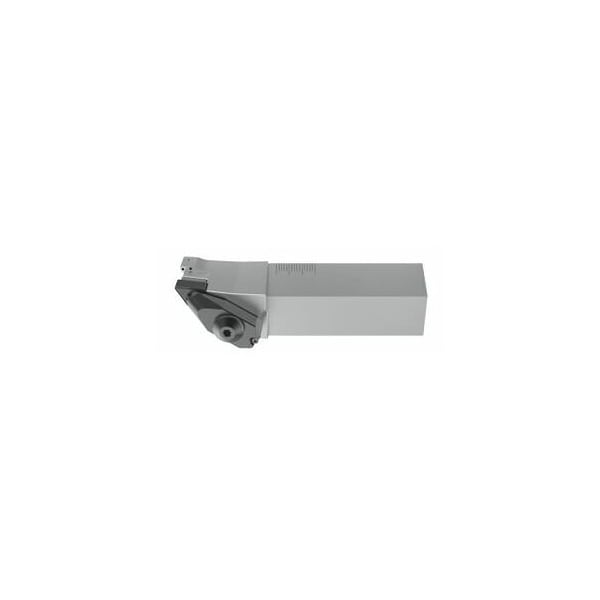

Master Eco Indexable Turning Toolholder, DDJNL2020X11, for DN 3 Inserts, Left-Hand
- Mfr # 250631 20/11
- Zoro # G714825217
product price:Â
$
218.99
/ea
Free Shipping & Returns
Key Features
Setting Angle
93 Degrees
Overall Length
95 mm
Shank Dia.
20 mm
Functional Width
25 mm
Inscribed Circle (In.)
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 250631 20/11
- Zoro #
- G714825217
- UPC #
- -
- Country of Origin
- Italy
- Setting Angle
- 93 Degrees
- Inscribed Circle (In.)
- 3/8 in
- Series
- Master Eco
- Type
- Boring bar
- Insert Shape
- Diamond
- Cutting Direction
- Left-Hand
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: DDJNR/L 2020X11 suitable indexable insert: DN.. 1104.. Functional width L4: 25 mm Head length L1: 35 mm Overall length L: 95 mm Shim: 269007 1
