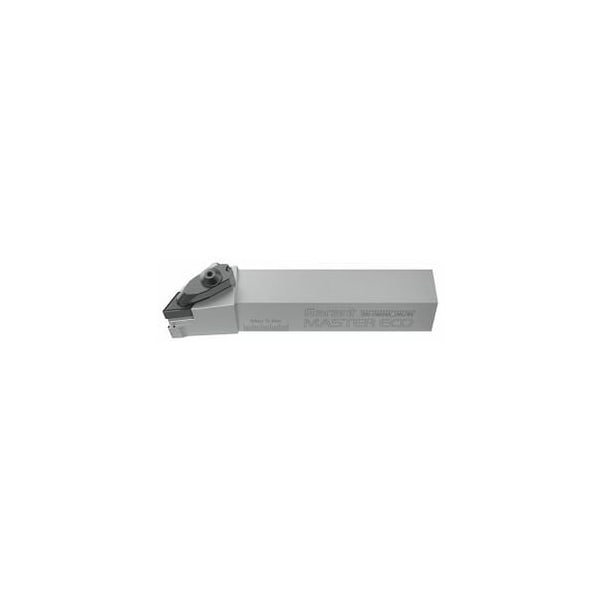

Master Eco Indexable Turning Toolholder, DDJNR2525M15, for DN 4 Inserts, Right-Hand
Mfr # 250628 25/15
Zoro # G114825190
product price:Â
$
252.99
/ea
Free Shipping & Returns
Key Features
Setting Angle
93 Degrees
Head Length
40 mm
Functional Width
32 mm
Size
25/15 mm
Insert Shape
Diamond
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 250628 25/15
- Zoro #
- G114825190
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Head Length
- 40 mm
- Functional Width
- 32 mm
- Size
- 25/15 mm
- Insert Size
- 15 mm
- Overall Length
- 150 mm
- Shank Dia.
- 25 mm
Details
- Setting Angle
- 93 Degrees
- Insert Shape
- Diamond
- Series
- Master Eco
- Inscribed Circle (In.)
- 1/2 in
- Cutting Direction
- Right-Hand
- Type
- Boring bar
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: DDJNR/L 2525M15 suitable indexable insert: DN.. 1506.. Functional width L4: 32 mm Head length L1: 40 mm Overall length L: 150 mm Shim: 259031 50
