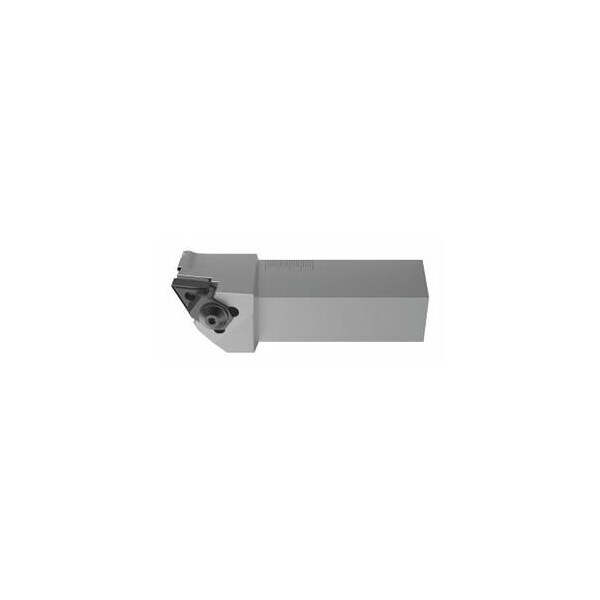

Master Eco Indexable Turning Toolholder, MTJNL2020X16, for TN 3 Inserts, Left-Hand
Mfr # 251405 20/16
Zoro # G614825218
product price:Â $232.99
/ea
Free Shipping & Returns
Key Features
Head Length
35 mm
Cutting Direction
Left-Hand
Overall Length
95 mm
Left/Right Hand
Right-Hand
Inscribed Circle (In.)
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 251405 20/16
- Zoro #
- G614825218
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Head Length
- 35 mm
- Overall Length
- 95 mm
- Shank Dia.
- 20 mm
- Functional Width
- 25 mm
- Size
- 20/16 mm
- Insert Size
- 16 mm
Details
- Cutting Direction
- Left-Hand
- Left/Right Hand
- Right-Hand
- Inscribed Circle (In.)
- 3/8 in
- Type
- Boring bar
- Insert Shape
- Triangle
- Series
- Master Eco
- Setting Angle
- 93 Degrees
Description
Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: MTJNR/L 2020X16 suitable indexable insert: TN.. 1604.. Functional width L4: 25 mm Head length L1: 35 mm Overall length L: 95 mm Shim: 259033 9
