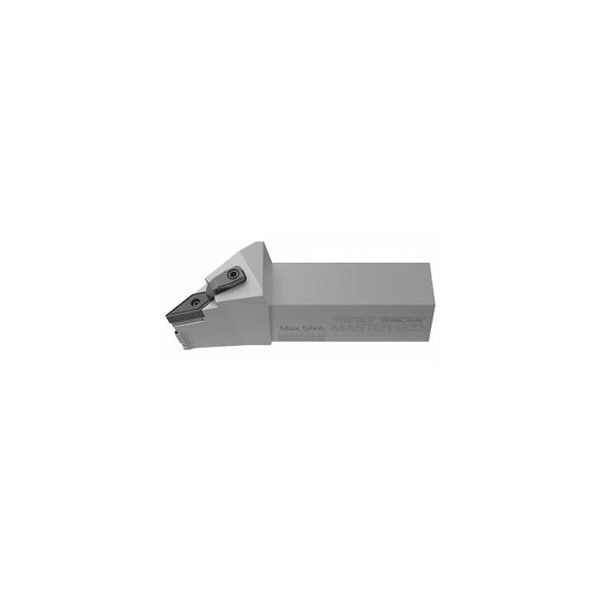

Master Eco Indexable Turning Toolholder, MVJNR2525X16, for VN 3 Inserts, Right-Hand
Mfr # 251696 25/16
Zoro # G714825187
product price:Â
$
265.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
25 mm
Functional Width
32 mm
Head Length
40 mm
Insert Shape
Diamond
Series
Master Eco
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 251696 25/16
- Zoro #
- G714825187
- UPC #
- -
- Country of Origin
- Italy
- Insert Shape
- Diamond
- Series
- Master Eco
- Setting Angle
- 93 Degrees
- Left/Right Hand
- Right-Hand
- Cutting Direction
- Right-Hand
- Type
- Boring bar
- Inscribed Circle (In.)
- 3/8 in
Description
Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: MVJNR/L 2525X16 suitable indexable insert: VN.. 1604.. Functional width L4: 32 mm Head length L1: 40 mm Overall length L: 110 mm Shim: 259033 10
