Shop GARANT

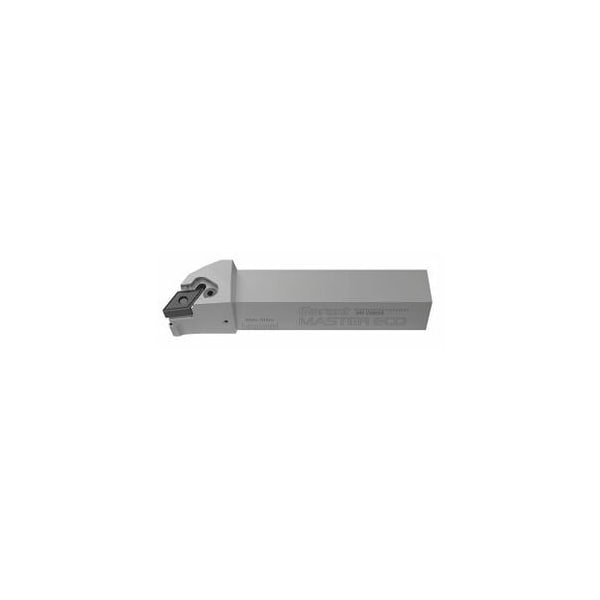

Master Eco Indexable Turning Toolholder, PDJNR2020H15, for DN 4 Inserts, Right-Hand

  • Mfr # 250624 20/15

  • Zoro # G514825172

product price:  $213.99
/ea
Free Shipping & Returns

Key Features

Overall Length
100 mm
Cutting Direction
Right-Hand
Head Length
40 mm
Size
20/15 mm
Type
Boring bar
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
250624 20/15
Zoro #
G514825172
UPC #
-
Country of Origin
Italy

Dimensions

Overall Length
100 mm
Head Length
40 mm
Size
20/15 mm
Shank Dia.
20 mm
Functional Width
25 mm
Insert Size
15 mm

Details

Cutting Direction
Right-Hand
Type
Boring bar
Inscribed Circle (In.)
1/2 in
Standards
DIN ISO 5610
Setting Angle
93 Degrees
Series
Master Eco
Insert Shape
Diamond

Description

Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: PDJNR/L 2020H15 suitable indexable insert: DN.. 1506.. Functional width L4: 25 mm Head length L1: 40 mm Overall length L: 100 mm Shim: 259031 45
