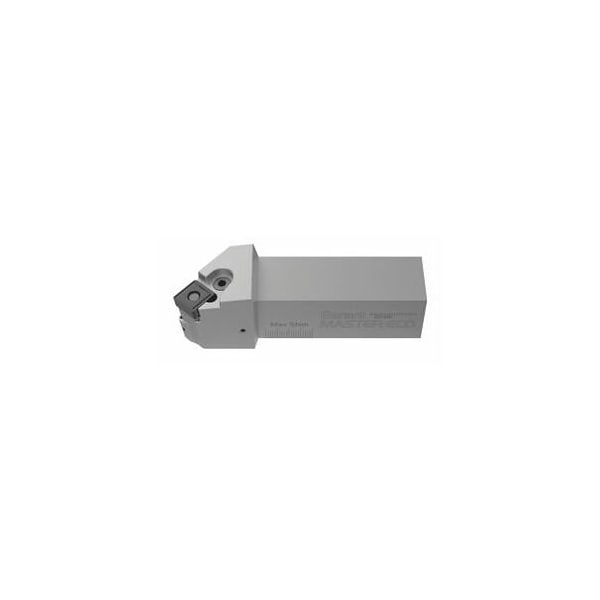

Master Eco Indexable Turning Toolholder, PSSNR2020X12, for SN 4 Inserts, Right-Hand
Mfr # 251116 20/12
Zoro # G614825201
product price: $213.99
/ea
Free Shipping & Returns
Key Features
Inscribed Circle (In.)
1/2 in
Head Length
35 mm
Insert Shape
Square
Size
20/12 mm
Standards
DIN ISO 5610
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
251116 20/12
Zoro #
G614825201
UPC #
-
Country of Origin
Italy
Dimensions
Head Length
35 mm
Size
20/12 mm
Functional Width
25 mm
Overall Length
95 mm
Shank Dia.
20 mm
Insert Size
12 mm
Details
Inscribed Circle (In.)
1/2 in
Insert Shape
Square
Standards
DIN ISO 5610
Type
Boring bar
Setting Angle
45 Degrees
Cutting Direction
Right-Hand
Series
Master Eco
Description
Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master eco toolholders No. 319006 311936 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: PSSNR/L 2020X12 suitable indexable insert: SN.. 1204.. Functional width L4: 25 mm Head length L1: 35 mm Overall length L: 95 mm Shim: 259031 46
