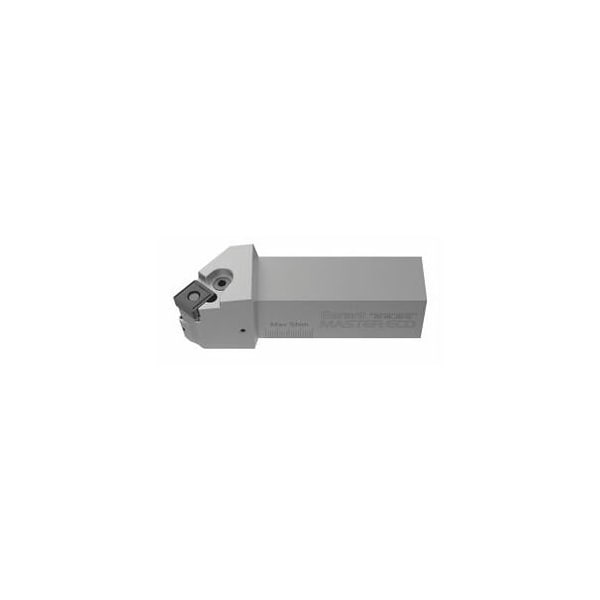

Master Eco Indexable Turning Toolholder, PSSNR2525X12, for SN 4 Inserts, Right-Hand
Mfr # 251116 25/12
Zoro # G014825184
product price:Â
$
246.99
/ea
Free Shipping & Returns
Key Features
Head Length
35 mm
Overall Length
105 mm
Setting Angle
45 Degrees
Insert Shape
Square
Cutting Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 251116 25/12
- Zoro #
- G014825184
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Head Length
- 35 mm
- Overall Length
- 105 mm
- Insert Size
- 12 mm
- Shank Dia.
- 25 mm
- Size
- 25/12 mm
- Functional Width
- 32 mm
Details
- Setting Angle
- 45 Degrees
- Insert Shape
- Square
- Cutting Direction
- Right-Hand
- Inscribed Circle (In.)
- 1/2 in
- Type
- Boring bar
- Standards
- DIN ISO 5610
- Series
- Master Eco
Description
Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master eco toolholders No. 319006 311936 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: PSSNR/L 2525X12 suitable indexable insert: SN.. 1204.. Functional width L4: 32 mm Head length L1: 35 mm Overall length L: 105 mm Shim: 259031 46
