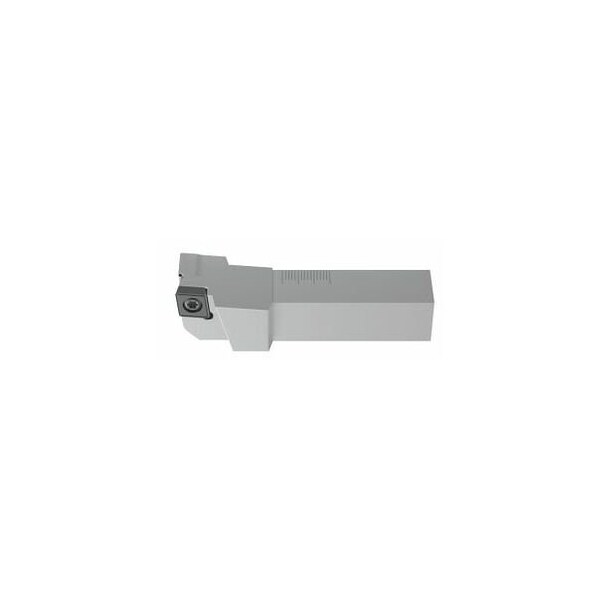

Master Eco Toolholder, SCLCL 1616F09, for CC 3 Inserts, Left-Hand
- Mfr # 260027 16/09
- Zoro # G614825256
product price:Â
$
208.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
16 mm
Standards
DIN ISO 5610
Setting Angle
95 Angle
Cutting Direction
Left-Hand
Size
16/09
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260027 16/09
- Zoro #
- G614825256
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 16 mm
- Size
- 16/09
- Head Length
- 30 mm
- Insert Size
- 9 mm
- Functional Width
- 20 mm
- Overall Length
- 80 mm
Details
- Item
- Screw-on toolholder
- Standards
- DIN ISO 5610
- Setting Angle
- 95 Angle
- Cutting Direction
- Left-Hand
- Series
- Master Eco
- ISO Number
- SCLCR/L 1616F09
- Coolant Through
- Yes
- Insert Shape
- 80 Degrees Diamond
- Shank Type
- Screw-on toolholder
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco toolholders No. 319006 311936 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: SCLCR/L 1616F09 suitable indexable insert: CC 09T3 Functional width L4: 20 mm Head length L1: 30 mm Overall length L: 80 mm Pack of insert screws: 269028 28
