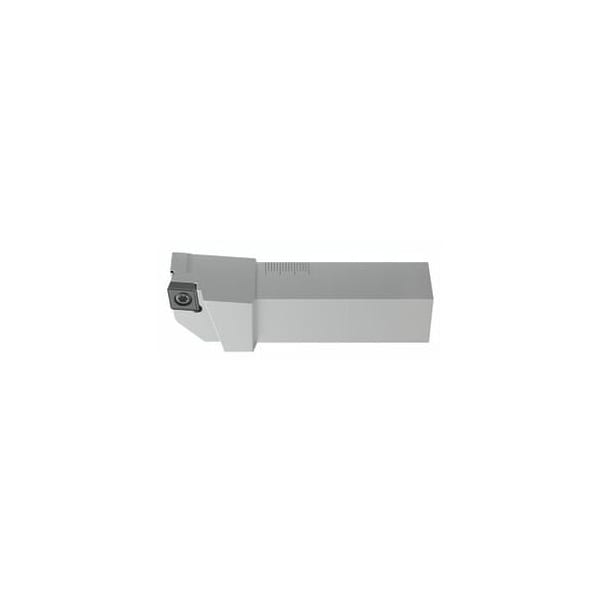

Master Eco Toolholder, SCLCL 2020X09, for CC 3 Inserts, Left-Hand
Mfr # 260027 20/09
Zoro # G314825259
product price:Â $213.99
/ea
Free Shipping & Returns
Key Features
Series
Master Eco
Coolant Through
Yes
ISO Number
SCLCR/L 2020X09
Shank Type
Screw-on toolholder
Overall Length
90 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260027 20/09
- Zoro #
- G314825259
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 90 mm
- Head Length
- 30 mm
- Functional Width
- 25 mm
- Insert Size
- 9 mm
- Size
- 20/09
- Shank Dia.
- 20 mm
Details
- Item
- Screw-on toolholder
- Series
- Master Eco
- Coolant Through
- Yes
- ISO Number
- SCLCR/L 2020X09
- Shank Type
- Screw-on toolholder
- Setting Angle
- 95 Angle
- Insert Shape
- 80 Degrees Diamond
- Cutting Direction
- Left-Hand
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco toolholders No. 319006 311936 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: SCLCR/L 2020X09 suitable indexable insert: CC 09T3 Functional width L4: 25 mm Head length L1: 30 mm Overall length L: 90 mm Pack of insert screws: 269028 28
