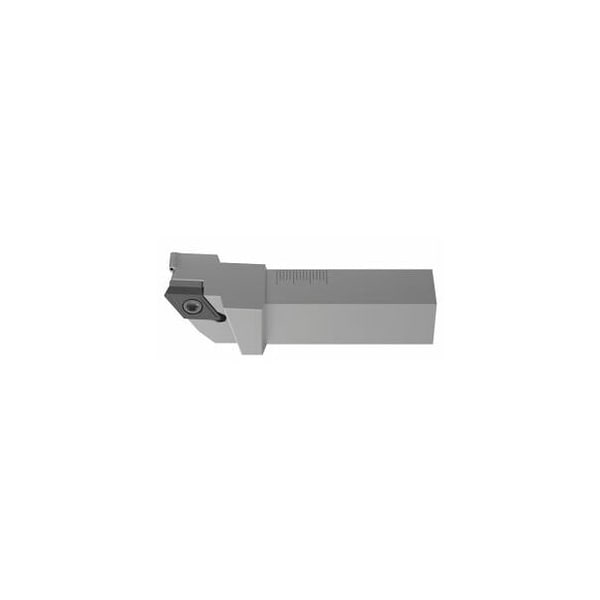

Master Eco Toolholder, SDJCL 1616F11, for DC 3 Inserts, Left-Hand
Mfr # 260291 16/11
Zoro # G114825305
product price:Â
$
204.99
/ea
Free Shipping & Returns
Key Features
Size
16/11
Overall Length
80 mm
ISO Number
SDJCR/L 1616F11
Shim
269007 1
Shank Dia.
16 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260291 16/11
- Zoro #
- G114825305
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Size
- 16/11
- Overall Length
- 80 mm
- Shank Dia.
- 16 mm
- Functional Width
- 20 mm
- Insert Size
- 11 mm
- Head Length
- 30 mm
Details
- Item
- Screw-on toolholder
- ISO Number
- SDJCR/L 1616F11
- Shim
- 269007 1
- Insert Shape
- 55 Degrees Diamond
- Shank Type
- Screw-on toolholder
- Setting Angle
- 93 Angle
- Shim screw
- 269013 6
- Standards
- DIN ISO 5610
- Series
- Master Eco
- Coolant Through
- Yes
- Cutting Direction
- Left-Hand
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holder No. 319006 311936 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: SDJCR/L 1616F11 suitable indexable insert: DC 11T3 Functional width L4: 20 mm Head length L1: 30 mm Overall length L: 80 mm Pack of insert screws: 269023 3
