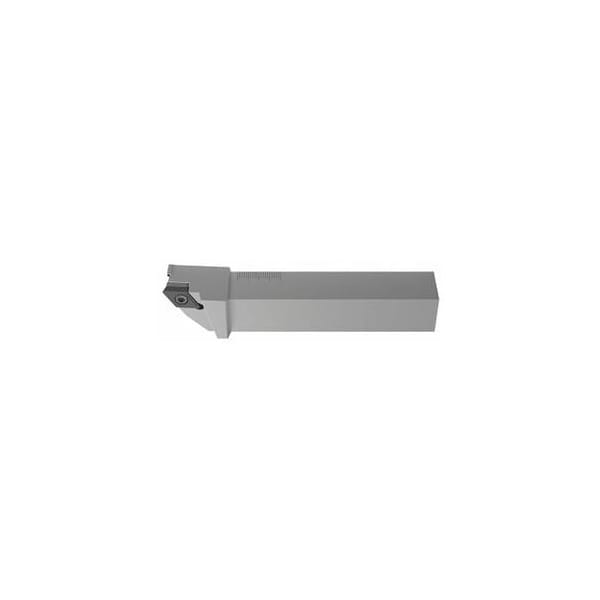

Master Eco Toolholder, SDJCL 2020K11, for DC 3 Inserts, Left-Hand
Mfr # 260293 20/11
Zoro # G814825322
product price:Â
$
224.99
/ea
Free Shipping & Returns
Key Features
ISO Number
SDJCR/L 2020K11
Coolant Through
Yes
Series
Master Eco
Shank Dia.
20 mm
Shank Type
Screw-on toolholder
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 260293 20/11
- Zoro #
- G814825322
- UPC #
- -
- Country of Origin
- Italy
- Item
- Screw-on toolholder
- ISO Number
- SDJCR/L 2020K11
- Coolant Through
- Yes
- Series
- Master Eco
- Shank Type
- Screw-on toolholder
- Standards
- DIN ISO 5610
- Insert Shape
- 55 Degrees Diamond
- Shim screw
- 269013 7
- Cutting Direction
- Left-Hand
- Setting Angle
- 93 Angle
- Shim
- 269007 1
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holder No. 319006 311936 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: SDJCR/L 2020K11 suitable indexable insert: DC 11T3 Functional width L4: 25 mm Head length L1: 30 mm Overall length L: 125 mm Pack of insert screws: 269023 3
