Shop GARANT

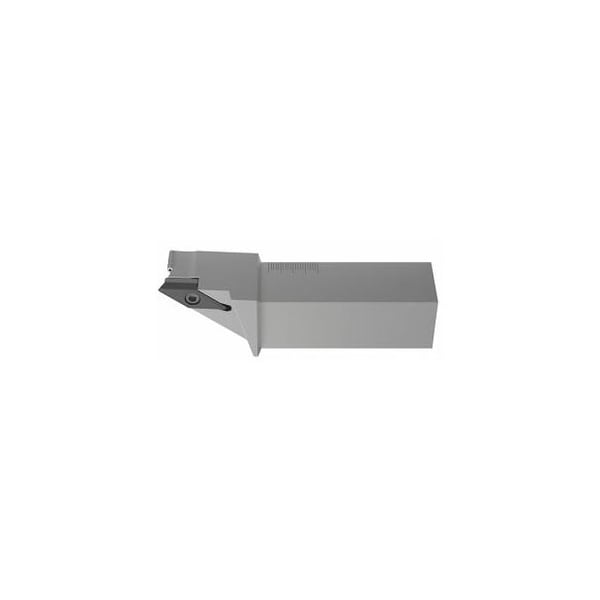

Master Eco Toolholder, SVJBL 2525X16, for VB 3 Inserts, Left-Hand

  • Mfr # 261123 25/16
  • Zoro # G914825369
product price:
$
246.99
/ea
Free Shipping & Returns

Key Features

Size
25/16
Cutting Direction
Left-Hand
Standards
DIN ISO 5610
Series
Master Eco
Overall Length
110 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
261123 25/16
Zoro #
G914825369
UPC #
-
Country of Origin
Italy

Dimensions

Size
25/16
Overall Length
110 mm
Insert Size
16 mm
Head Length
40 mm
Functional Width
32 mm
Shank Dia.
25 mm

Details

Item
Screw-on toolholder
Cutting Direction
Left-Hand
Standards
DIN ISO 5610
Series
Master Eco
Shim screw
269013 7
Coolant Through
Yes
Shim
259033 5
Shank Type
Screw-on toolholder
Setting Angle
93 Angle
ISO Number
SVJBR/L 2525X16
Insert Shape
35 Degrees Diamond

Description

Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: SVJBR/L 2525X16 suitable indexable insert: VB 1604 Functional width L4: 32 mm Head length L1: 40 mm Overall length L: 110 mm Pack of insert screws: 269023 3
