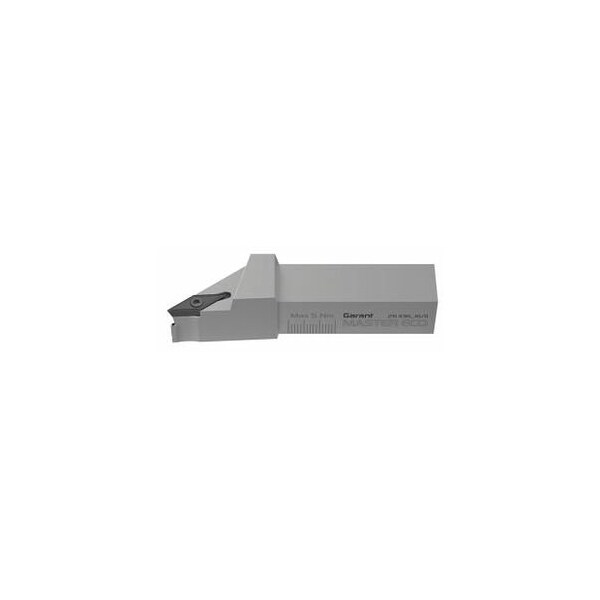

Master Eco Toolholder, SVJCR 1616X11, for VC 2 Inserts, Right-Hand
Mfr # 261136 16/11
Zoro # G814825285
product price:Â $204.99
/ea
Free Shipping & Returns
Key Features
Size
16/11
Cutting Direction
Right-Hand
Shank Dia.
16 mm
Overall Length
85 mm
Series
Master Eco
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261136 16/11
- Zoro #
- G814825285
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Size
- 16/11
- Shank Dia.
- 16 mm
- Overall Length
- 85 mm
- Functional Width
- 20 mm
- Head Length
- 35 mm
- Insert Size
- 11 mm
Details
- Item
- Screw-on toolholder
- Cutting Direction
- Right-Hand
- Series
- Master Eco
- Insert Shape
- 35 Degrees Diamond
- ISO Number
- SVJCR/L 1616X11
- Shank Type
- Screw-on toolholder
- Setting Angle
- 93 Angle
- Coolant Through
- Yes
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: SVJCR/L 1616X11 suitable indexable insert: VC 1103 Functional width L4: 20 mm Head length L1: 35 mm Overall length L: 85 mm Pack of insert screws: 269023 1
