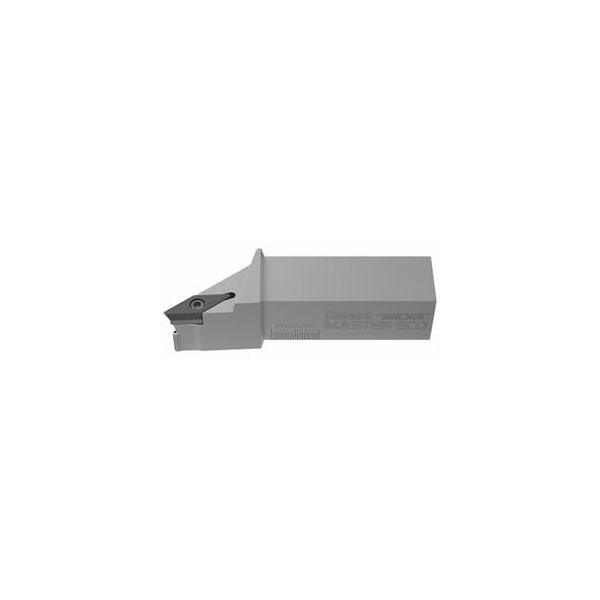

Master Eco Toolholder, SVJCR 2525X16, for VC 3 Inserts, Right-Hand
Mfr # 261136 25/16
Zoro # G714825279
product price:Â
$
241.99
/ea
Free Shipping & Returns
Key Features
Size
25/16
Series
Master Eco
Shim screw
269013 7
Cutting Direction
Right-Hand
Functional Width
32 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261136 25/16
- Zoro #
- G714825279
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Size
- 25/16
- Functional Width
- 32 mm
- Head Length
- 40 mm
- Overall Length
- 110 mm
- Insert Size
- 16 mm
- Shank Dia.
- 25 mm
Details
- Item
- Screw-on toolholder
- Series
- Master Eco
- Shim screw
- 269013 7
- Cutting Direction
- Right-Hand
- Insert Shape
- 35 Degrees Diamond
- Setting Angle
- 93 Angle
- ISO Number
- SVJCR/L 2525X16
- Coolant Through
- Yes
- Shank Type
- Screw-on toolholder
- Shim
- 259033 5
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: SVJCR/L 2525X16 suitable indexable insert: VC 1604 Functional width L4: 32 mm Head length L1: 40 mm Overall length L: 110 mm Pack of insert screws: 269023 3
