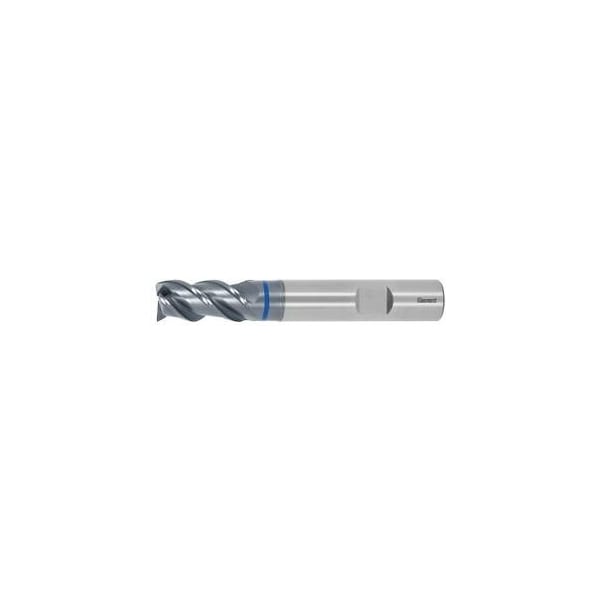

Master INOX Solid Carbide End Mill for Stainless Steels, TiAlN Coated, 2 mm
Mfr # 202387 2
Zoro # G714381201
product price: $45.59
/eaKey Features
Overall Length
57 mm
Milling Diameter
2 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
202387 2
Zoro #
G714381201
UPC #
-
Country of Origin
Austria
Dimensions
Overall Length
57 mm
Milling Diameter
2 mm
Length of Cut
5 mm
Neck Dia.
1.92 mm
Min. Cutting Depth
0.12 mm
Tolerance Nominal Diameter
h10
Corner Chamfer Width at 45°
0.05 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1 mm
Maximum Cutting Depth Ap Max When Side Milling
5 mm
Shank Dia.
6 mm
Description
For roughing and finishing HPC milling cutters with newly developed high-performance coating for outstanding service life and optimum metal removal rates in a wide range of stainless steels. Greater oxidation resistance and high-temperature hardness. Can be used at high cutting speeds, particularly suitable even for TOOLOX. Dimensions similar to DIN 6527. Tolerance nominal Dia. h10 No. of teeth Z: 3 Helix angle: 40 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 5 mm Overhang length L1 incl. recess: 10 mm Recess Dia. D1: 1.92 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
