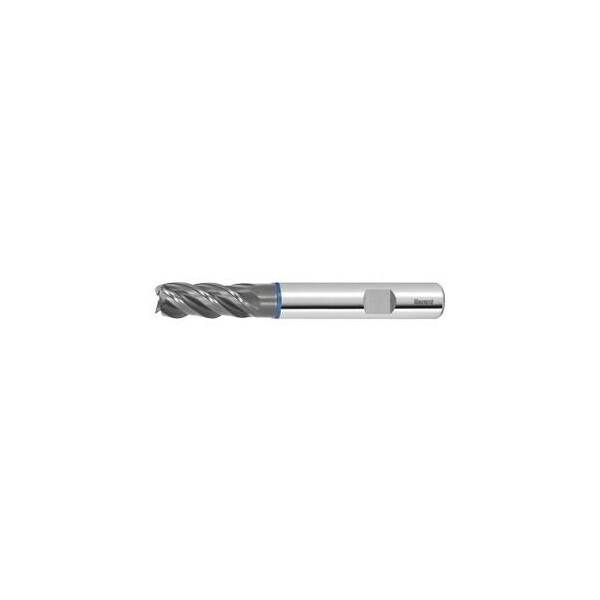

Master INOX Solid Carbide End Mill, for Stainless Steels, TiAlN Coated, 8 mm
Mfr # 203006 8
Zoro # G614381882
product price: $70.15
/eaKey Features
Shank Dia.
8 mm
Helix Angle
40 Degrees
Cutting Direction
horizontal, oblique and vertical
End Mill Style
Chamfer
End Mill Cutting Type
HPC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203006 8
Zoro #
G614381882
UPC #
-
Country of Origin
Austria
Dimensions
Shank Dia.
8 mm
Overall Length
68 mm
Milling Diameter
8 mm
Length of Cut
19 mm
Neck Dia.
7.5 mm
Maximum Cutting Depth Ap Max When Side Milling
19 mm
Corner Chamfer Width at 45°
0.25 mm
Tolerance Nominal Diameter
h10
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
8 mm
Description
For roughing and finishing. HPC milling cutter with newly developed high-performance coating for outstanding tool life and optimum metal removal rate in a very wide range of stainless steels. Greater oxidation resistance and high-temperature hardness. Can be used at high cutting speeds, particularly suitable even for TOOLOX. Advantage: Particularly low vibration running. Tolerance nominal Dia. h10 No. of teeth Z: 4 Helix angle: 40 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 19 mm Overhang length L1 incl. recess: 32 mm Recess Dia. D1: 7.5 mm Overall length L: 68 mm Shank Dia. Ds: 8 mm
