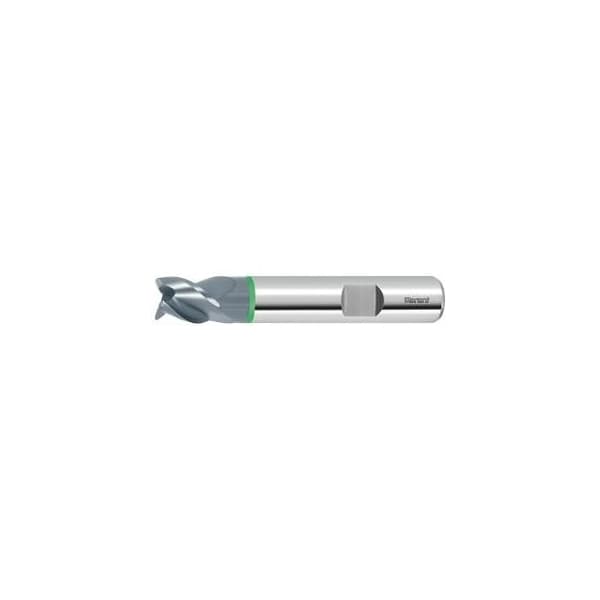

Master Steel PickPocket Solid Carbide End Mill, TiAlN Coated, 9 mm
Mfr # 202402 9
Zoro # G314382844
product price:Â
$
100.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
9 mm
Overall Length
66 mm
Number of Flutes
3
End Mill Style
Corner Radius
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202402 9
- Zoro #
- G314382844
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 3
- End Mill Style
- Corner Radius
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Corner Rounding
- 0.32 mm
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.06 mm
- Color Ring
- green
- Type of Product
- End Mill
- Standard
- DIN 6527
- Shank Tolerance
- h6
- Correction Factor Fz
- 2
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.08 mm
- Cutting Direction
- horizontal, oblique and vertical
- Type
- N
- Helix Angle
- 38 Degrees
- End Mill Material
- Carbide
- Coolant Through
- No
- Series
- Master Steel
- Shank Type
- DIN 6535 HB to h6
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.06 mm
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.08 mm
Description
For roughing and finishing With corner radii similar to torus cutters. Up to 1xD into solid material at very high feed rates with smooth cutting action. Corner radii matched to DIN specifications for drive keyways. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 3 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 10 mm Overall length L: 66 mm Shank Dia. Ds: 10 mm Corner rounding rv: 0.32 mm Feed fz for slot milling in steel < 900 N/mm2: 0.06 mm
