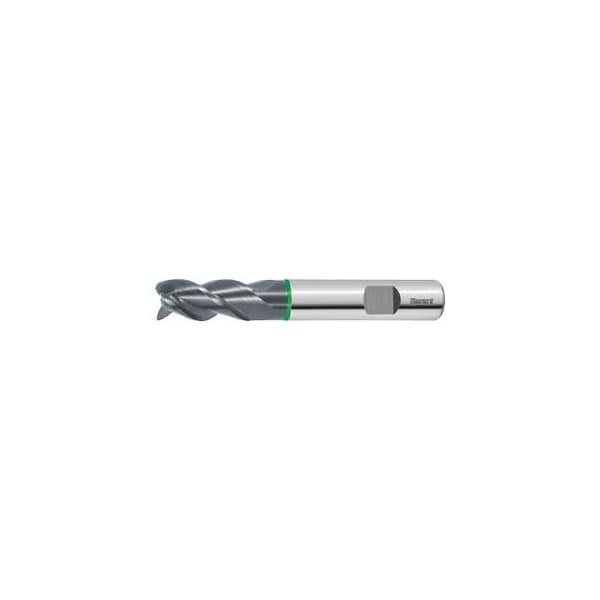

Master Steel PickPocket Solid Carbide End Mill, TiAlN Coated, 9 mm
Mfr # 202404 9
Zoro # G514382583
product price: $99.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
No
Neck Dia.
8.8 mm
Cutting Direction
horizontal, oblique and vertical
Finish
TiAlN
Number of Flutes
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202404 9
Zoro #
G514382583
UPC #
-
Country of Origin
Germany
Dimensions
Neck Dia.
8.8 mm
Shank Dia.
10 mm
Milling Diameter
9 mm
Overall Length
72 mm
Length of Cut
22 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Min. Cutting Depth
0.8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9 mm
Description
For roughing and finishing With corner radii similar to torus cutters. Up to 1xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 3 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 22 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 8.8 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm
