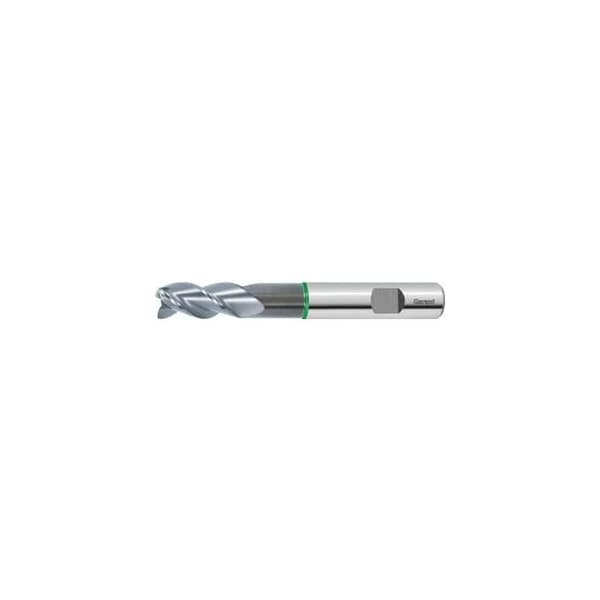

Master Steel PickPocket Solid Carbide End Mill, TiAlN Coated, 9 mm
Mfr # 202406 9
Zoro # G014383301
product price: $118.99
/ea
Free Shipping & Returns
Key Features
Color Ring
green
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.06 mm
Feed Fz For Side Milling in Steel < 900 N/mm2
0.08 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202406 9
Zoro #
G014383301
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Min. Cutting Depth
0.45 mm
Tolerance Nominal Diameter
f8
Milling Diameter
9 mm
Overall Length
80 mm
Shank Dia.
10 mm
Length of Cut
22 mm
Neck Dia.
8.7 mm
Description
For roughing and finishing With corner radii similar to torus cutters. Up to 1xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 3 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 22 mm Overhang length L1 incl. recess: 38 mm Recess Dia. D1: 8.7 mm Overall length L: 80 mm Shank Dia. Ds: 10 mm
