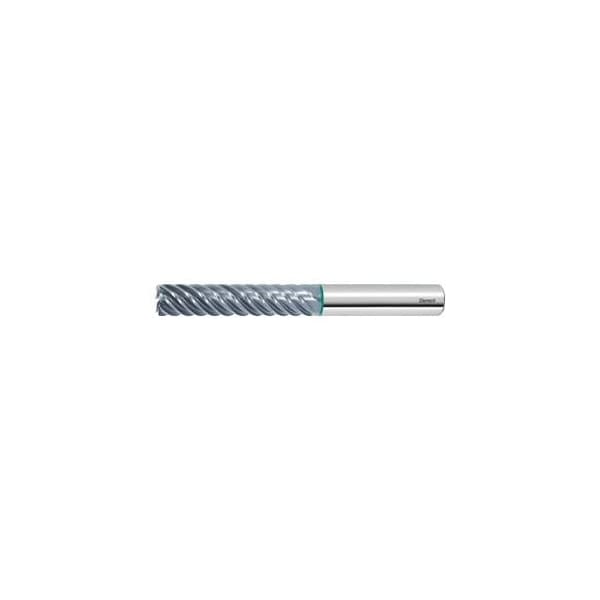

Master Steel Solid Carbide End Mill, for Finishing, TiAlN Coated, 12 mm
Mfr # 204018 12
Zoro # G314383612
product price:Â $207.99
/ea
Free Shipping & Returns
Key Features
Overall Length
112 mm
Milling Diameter
12 mm
Number of Flutes
7
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 204018 12
- Zoro #
- G314383612
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 112 mm
- Milling Diameter
- 12 mm
- Length of Cut
- 60 mm
- Shank Dia.
- 12 mm
- Tolerance Nominal Diameter
- f8
- Corner Chamfer Width at 45°
- 0.12 mm
- Min. Cutting Depth
- 0.12 mm
- Cutting Width Ae for Milling Operation
- 0.05×D for side milling
- Maximum Cutting Depth Ap Max When Side Milling
- 60 mm
Description
For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Particularly long cutting edges for efficient finishing. Note: ae max = 0.05xD Can be reground from Dia. DC = 6 mm. Tolerance nominal Dia. f8 No. of teeth Z: 7 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 7 Flute length Lc: 60 mm Overall length L: 112 mm Shank Dia. Ds: 12 mm Corner chamfer width at 45 Deg: 0.12 mm Feed fz for side milling in steel < 900 N/mm2: 0.08 mm
