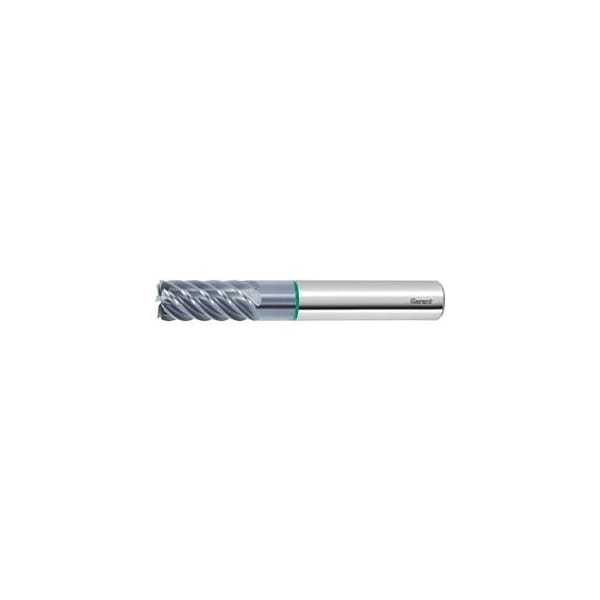

Master Steel Solid Carbide End Mill, for Finishing, TiAlN Coated, 4 mm
Mfr # 204012 4
Zoro # G714383403
product price: $62.59
/eaKey Features
Milling Diameter
4 mm
Overall Length
57 mm
Number of Flutes
7
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
204012 4
Zoro #
G714383403
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
4 mm
Overall Length
57 mm
Length of Cut
11 mm
Min. Cutting Depth
0.04 mm
Shank Dia.
6 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Corner Chamfer Width at 45°
0.04 mm
Cutting Width Ae for Milling Operation
0.1×D for side milling
Description
For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Suitable for machining titanium and titanium alloys. Note: ae max = 0.1xD Can be reground from Dia. DC = 6 mm. Tolerance nominal Dia. f8 No. of teeth Z: 7 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 7 Flute length Lc: 11 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.04 mm Feed fz for side milling in steel < 900 N/mm2: 0.02 mm
