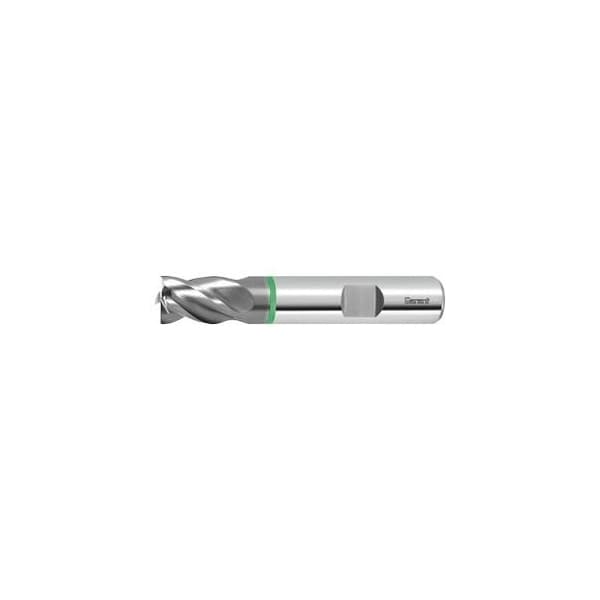

Master Steel Solid Carbide End Mill, TiAlN Coated, 3 mm

  • Mfr # 203034 3
  • Zoro # G014382076
product price:
$
49.69
/ea

Key Features

Overall Length
50 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Length of Cut
6 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203034 3
Zoro #
G014382076
UPC #
-
Country of Origin
Germany
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
End Mill Cutting Type
HPC
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
Helix Angle
38 Degrees
Coolant Through
No
Series
Master Steel
Type
N
Shank Type
DIN 6535 HB to h6
Corner Chamfer Angle
45 Degrees
Color Ring
green
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.02 mm
Feed Fz For Side Milling in Steel < 900 N/mm2
0.025 mm
Shank Tolerance
h6
Standard
DIN 6527
Correction Factor Fz
2
Type of Product
End Mill
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.02 mm
Feed Fz For Side Milling in Steel < 900 N/mm2
0.025 mm

Description

For roughing and finishing. Up to 1xD into solid material at very high feed rates with smooth cutting action. At maximum machining depths, ensure compliance with the ratio dimension LC cutting length / Dia. nominal size! Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 6 mm Overall length L: 50 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.06 mm Feed fz for slot milling in steel < 900 N/mm2: 0.02 mm
