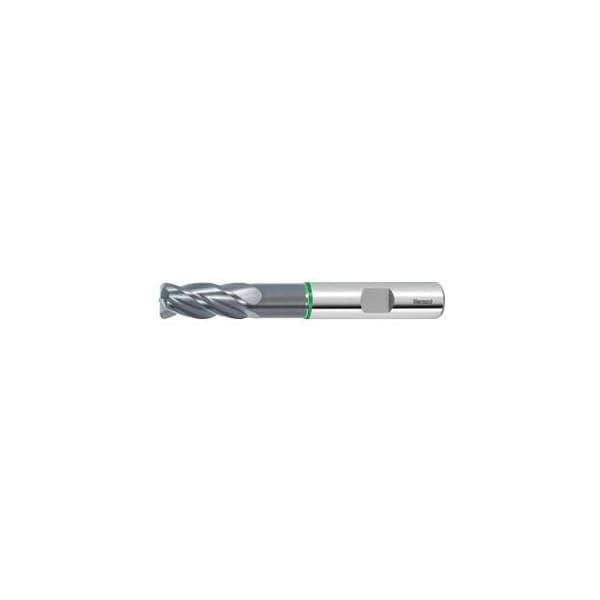

Master Steel Solid Carbide Torus End Mill, TiAlN Coated, 10/0.5 mm
Mfr # 206359 10/0,5
Zoro # G314382585
product price:
$
129.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
10 mm
Overall Length
80 mm
Number of Flutes
4
End Mill Style
Corner Radius
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 206359 10/0,5
- Zoro #
- G314382585
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Corner Radius
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Color Ring
- green
- Type of Product
- Torus cutter
- Type
- N
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.08 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.06 mm
- End Mill Material
- Carbide
- Series
- Master Steel
- Helix Angle
- 38 Degrees
- Correction Factor Fz
- 2
- Cutting Direction
- horizontal, oblique and vertical
- Shank Type
- DIN 6535 HB to h6
- Coolant Through
- No
- Overall Reach
- 38 mm
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.08 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.06 mm
Description
Tolerance: Corner radius R1 = ±0.01 mm. Advantage: optimized flute form, eccentric relief ground, wide chip space. HPC milling cutters with various corner radii for all radial transitions. No. of teeth Z: 4 Helix angle: 38 degrees Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 22 mm Corner radius R1: 0.5 mm Overhang length L1 incl. recess: 38 mm Recess Dia. D1: 9.7 mm Overall length L: 80 mm
