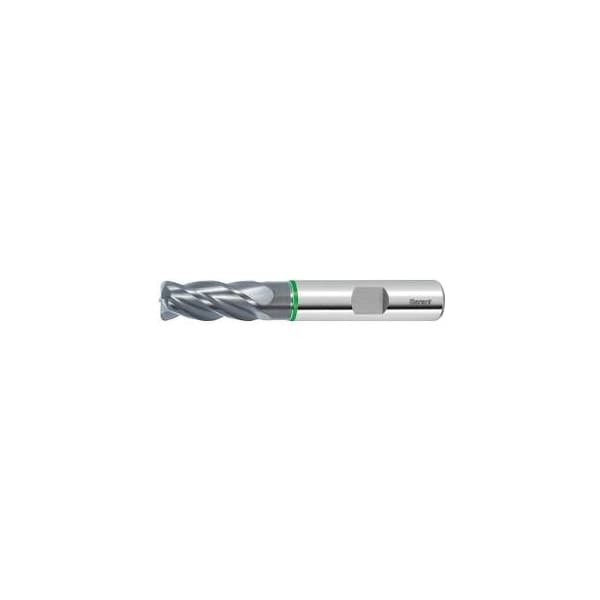

Master Steel Solid Carbide Torus End Mill, TiAlN Coated, 10/1.0 mm
Mfr # 206354 10/1,0
Zoro # G714382093
product price: $99.79
/ea
Free Shipping & Returns
Key Features
Shank Type
DIN 6535 HB to h6
Cutting Direction
horizontal, oblique and vertical
Standard
DIN 6527
Type of Product
Torus cutter
Color Ring
green
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206354 10/1,0
Zoro #
G714382093
UPC #
-
Country of Origin
Germany
Dimensions
Length of Cut
22 mm
Neck Dia.
9.8 mm
Shank Dia.
10 mm
Corner Radius
1 mm
Milling Diameter
10 mm
Overall Length
72 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.5 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
f8
Description
Tolerance: Corner radius R1 = ±0.01 mm. Advantage: HPC milling cutters with various corner radii for all radial transitions. optimized flute form, eccentric relief ground, wide chip space. No. of teeth Z: 4 Helix angle: 38 degrees Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 22 mm Corner radius R1: 1 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 9.8 mm Overall length L: 72 mm
