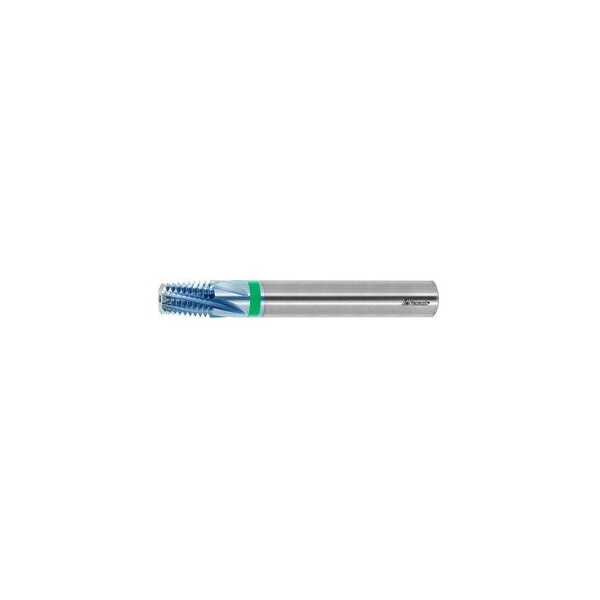

Master TM NPT Thread Mill, 3/8-18 Thread Size, TiAlN Coated
Mfr # 139729 3/8-18
Zoro # G509578281
product price: $499.99
/ea
Free Shipping & Returns
Key Features
Overall Length
82 mm
Shank Dia.
12 mm
Finish - Machining
TiAlN
Drill Diameter
11.11 mm
Coolant Through
Yes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
139729 3/8-18
Zoro #
G509578281
UPC #
4062406058173
Country of Origin
Germany
Dimensions
Overall Length
82 mm
Shank Dia.
12 mm
Thread Size
3/8-18
Drill Diameter
11.11 mm
Shank length
45 mm
Thread size
3/8-18 NPT
Thread Diameter
17.06 mm
Flute Length
13.38 mm
Description
Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. - Significantly reduced vibration due to irregular cutting edge spacing. - Increased number of cutting edges. - New coating for optimum wear resistance. - Corrected thread profile for avoidance of profile distortions. Application: Tapered pipe threads NPT to ANSI B1.20.1- for threads with sealants. No. of teeth Z: 6 Threads per inch: 18 Nominal dia DC: 11.11 mm Flute length Lc: 13.38 mm Shank length Ls: 45 mm Overall length L: 82 mm Shank dia Ds: 12 mm
