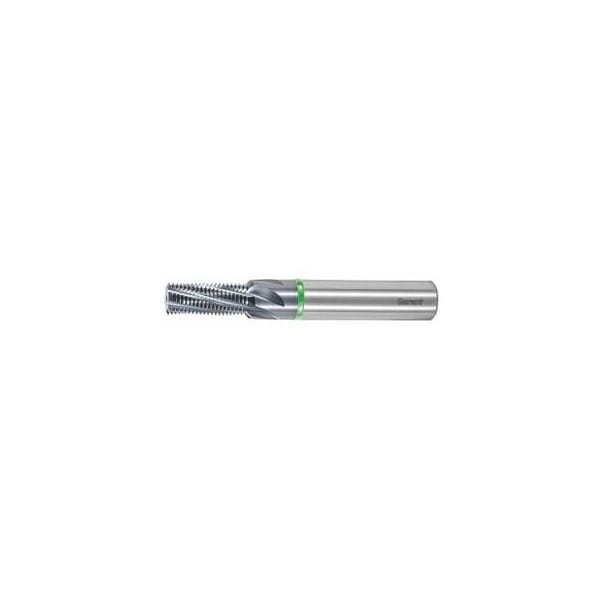

Master TM Solid Carbide Thread Mill, for Whitworth Pipe Threads, 3/8in-19 Thread Size, AlTiN Coated

Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. Significantly reduced vibration due to irregular cutting edge spacing. Increased number of cutting edges. The latest generation of AlTiN-based HiPIMS coating. Corrected thread profile for avoidance of profile distortions. Advantage: Incorporating a countersink profile for a 90 Deg countersink and thread milling in a single operation. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 threads that do not form a seal within the connections. Suitable for internal and external threads. No. of teeth Z: 6 Application for type of drilling: up to 2xD for through holes Application for type of drilling: up to 2xD for blind holes For use with external threads: up to 2xD for bolt threads Thread pitch: 1.337 mm Threads per inch: 19 Nominal Dia. DC: 14.4 mm Flute length Lc: 34.09 mm Shank length Ls: 48 mm Overall length L: 108 mm
