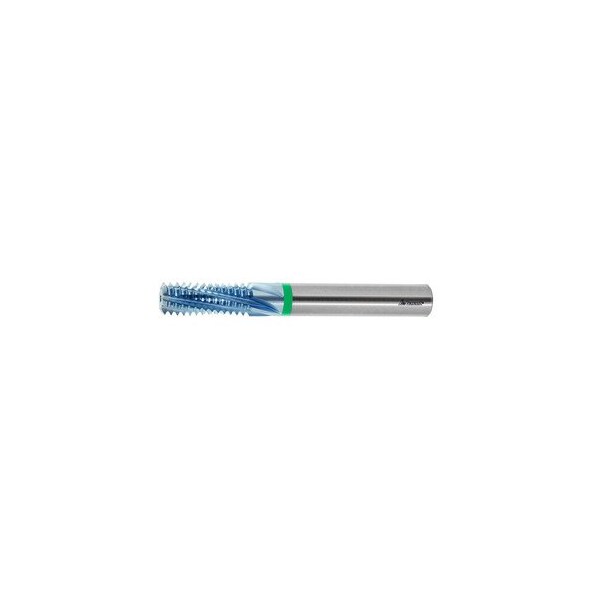

Master TM UNC Thread Mill, 1-8 Thread Size, TiAlN Coated
Mfr # 139722 1-8
Zoro # G109578735
product price:Â
$
776.99
/ea
Free Shipping & Returns
Key Features
Overall Length
120 mm
Shank Dia.
20 mm
Finish - Machining
TiAlN
Coolant Through
Yes
Pitch
3.175 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 139722 1-8
- Zoro #
- G109578735
- UPC #
- 4062406058029
- Country of Origin
- Germany
- Item
- thread milling cutter
- Finish - Machining
- TiAlN
- Coolant Through
- Yes
- Pitch
- 3.175 mm
- Shank
- DIN 6535 HA with h6
- Material
- solid carbide
- Thread type
- UNC-LH
- Cutting direction
- right-hand
- Cutter Spacing
- Unequal
- Threads per Inch
- 8
- Number of Teeth
- 6
- Series
- Master TM
- Number Of Clamping Slots
- 6
- For Hole Type
- Blind Holes and Through Holes
- Internal/External
- Internal
- Feed in Steel
- 0.15 mm
- Flank Angle
- 60 Degrees
Description
Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. - Significantly reduced vibration due to irregular cutting edge spacing. - Increased number of cutting edges. - New coating for optimum wear resistance. - Corrected thread profile for avoidance of profile distortions. Application: For UNC unified coarse threads ASME-B1.1. Note: Form HB and HE supplied at the same price as HA. Form HB: order with No. 139722 + 129100 HB Form HE: order with No. 139722 + 129100 HE Thread type: UNC Thread type: UNC-LH No. of teeth Z: 6 Threads per inch: 8 Nominal dia DC: 19.95 mm Flute length Lc: 52.26 mm Shank length Ls: 50 mm Overall length L: 120 mm Shank dia Ds: 20 mm
