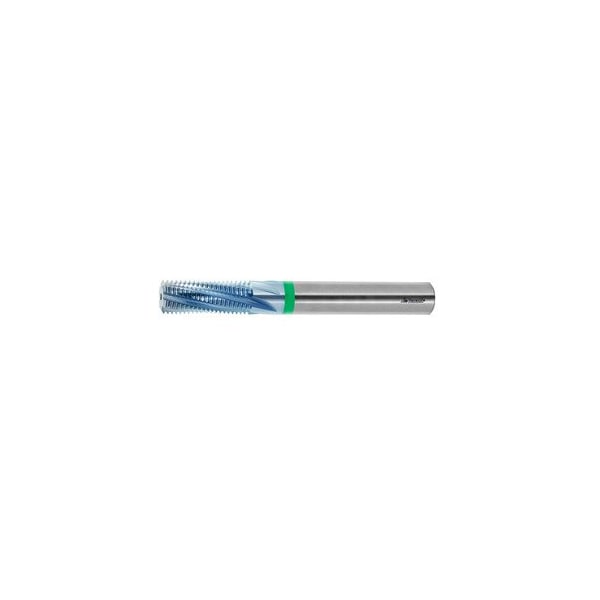

Master TM UNF Thread Mill, 7/8-14 Thread Size, TiAlN Coated
Mfr # 139727 7/8-14
Zoro # G409578480
product price: $671.99
/ea
Free Shipping & Returns
Key Features
Overall Length
110 mm
Shank Dia.
16 mm
Finish - Machining
TiAlN
Coolant Through
Yes
Drill Diameter
15.95 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
139727 7/8-14
Zoro #
G409578480
UPC #
4062406058111
Country of Origin
Germany
Dimensions
Overall Length
110 mm
Shank Dia.
16 mm
Thread Size
7/8-14
Drill Diameter
15.95 mm
Shank length
48 mm
Thread size
7/8-14 UNF
Flute Length
46.17 mm
Thread Diameter
22.23 mm
Description
Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. - Significantly reduced vibration due to irregular cutting edge spacing. - Corrected thread profile for avoidance of profile distortions. - increased number of cutting edges. - new coating for optimum wear resistance. Application: For UNF unified fine threads ASME-B1.1. Note: Form HB and HE supplied at the same price as HA. Form HB: order with No. 139727 + 129100 HB Form HE: order with No. 139727 + 129100 HE Thread type: UNF Thread type: UNF-LH No. of teeth Z: 6 Threads per inch: 14 Nominal dia DC: 15.95 mm Flute length Lc: 46.17 mm Shank length Ls: 48 mm Overall length L: 110 mm Shank dia Ds: 16 mm
