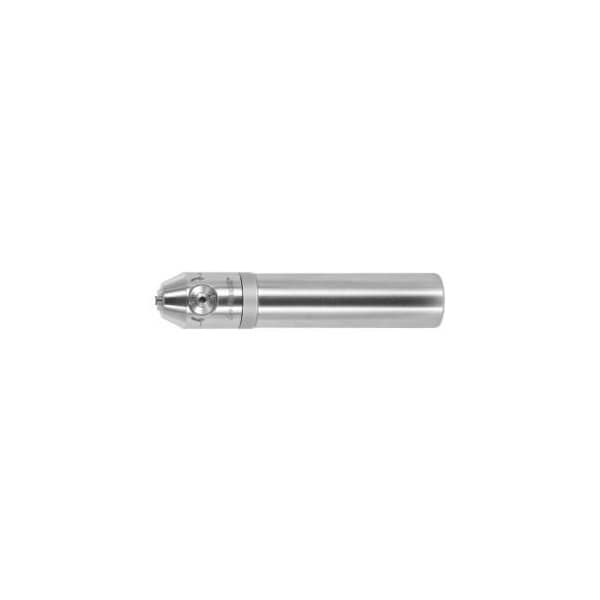

MicroClamp drill chuck plain, L 100, Clamping Range: 0.2 mm to 3.4 mm
Mfr # 302407 0,2-3
Zoro # G514774425
product price:Â $922.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
16 mm
Outside Dia.
19 mm
Machining Strategy
HSC
Balance Quality
G 2.5 at 18,000 rpm
Clamping Range Dia.
0.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
302407 0,2-3
Zoro #
G514774425
UPC #
-
Country of Origin
Germany
Dimensions
Shank Dia.
16 mm
Outside Dia.
19 mm
Clamping Range Dia.
0.2 mm
Dia.
12 mm
Details
Item
Micro drill chuck
Machining Strategy
HSC
Balance Quality
G 2.5 at 18,000 rpm
Shank Tolerance
h6
Description
For clockwise and anticlockwise rotation. Concentricity 0.005 mm. Transmissible torque 7 Nm. Maximum speed 60-000 rpm. Operated from the side. Permissible tightening torque 2 Nm. Clamping range 0.2 3.4 mm. Supplied with: Clamping wrench with T-handle size 2. Machining strategy: HSC Shank tolerance: h6 Shank Dia d: 16 mm Clamping range Dia D1: 0.2 3.4 mm External Dia D: 19 mm Dia D2: 12 mm
