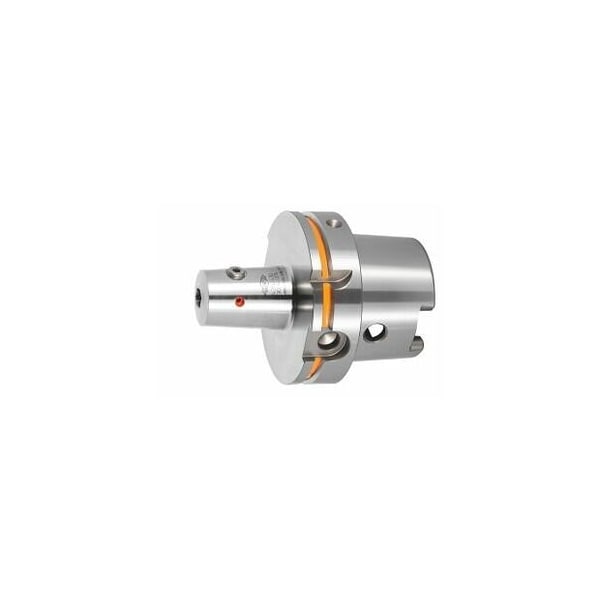

Milling Chuck with Cooling Channel Bores, HSK-A 100 Short, Clamping Diameter D1: 10mm
Mfr # 304460 10
Zoro # G314776810
product price:Â $617.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
1.2598
Taper
HSK100A
Balance Quality
G 2.5 at 25,000 rpm
Projection
80 mm
Concentricity
≤ 3 µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 304460 10
- Zoro #
- G314776810
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Dia. (In.)
- 1.2598
- Clamping Dia.
- 10 mm
- Outside Dia.
- 37 mm
Details
- Item
- Side lock arbor
- Taper
- HSK100A
- Balance Quality
- G 2.5 at 25,000 rpm
- Projection
- 80 mm
- Concentricity
- ≤ 3 µm
- Shape
- A
- Coolant Through
- Yes
Description
With RFID/Balluffchip bore. All shanks hard turned. Supplied with 4 table cooling channel bores. Advantage: No risk of the cutter being pulled out, not even a tug. optimized external contour vibration-damping behaviour. Pleasant handling thanks to the differential thread. Breakage of the milling cutter shank is improbable. Precision version. Application: For clamping tools with side drive flats to DIN 1835 Form B and DIN 6535 Form HB. Best suited for TPC milling or high feed rate applications. No risk of the cutter being pulled out, more precise radial run-out, process reliability! Optional extras: Coolant pipe No. 309880, coolant pipe wrench No. 309890 Overhang dimension A: 80 mm External Dia D: 37 mm Dia D2: 32 mm
