Shop GARANT

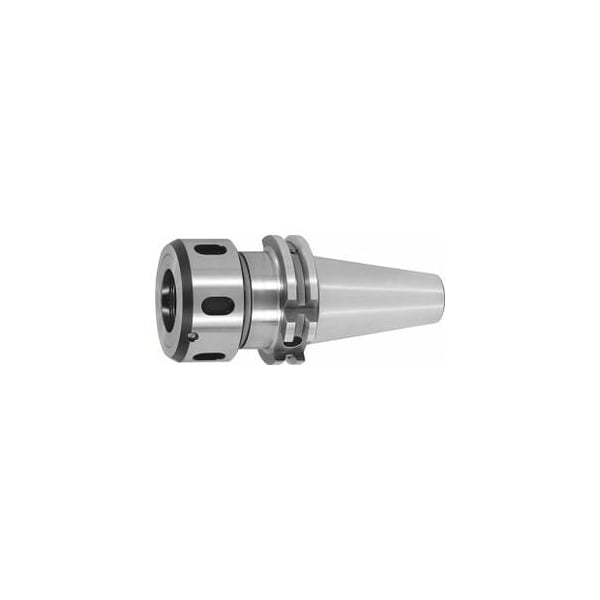

OZ collet chuck Form ADB, SK 40, Projection: 70, Clamping range: 2-25mm

  • Mfr # 300695 2-25

  • Zoro # G014773966

product price:
$
174.99
/ea
Free Shipping & Returns

Key Features

Shank Shape
ADB
Taper Size
SK40
Projection
70 mm
Clamping Dia.
2-25 mm
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
300695 2-25
Zoro #
G014773966
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Taper Size
SK40
Clamping Dia.
2-25 mm
Outside Dia.
60 mm

Details

Item
Collet chuck
Shank Shape
ADB
Projection
70 mm
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 3 µm
Suitable C-Hook (Pin) Spanner No. 628400
58 / 62
Spare Clamping Nut No. 309670
2
Standards
ISO 7388-1
Clamping Range
2 mm

Description

External and internal taper ground. Ball-bearing power-clamping nut. For higher clamping force and improved radial run-out. GARANT With RFID / Balluffchip bore. All shanks hard turned for smooth running!. Clamping nut balanced G 2.5 / 25-000 rpm. Application: For clamping tools with plain shank in collets to DIN 6388 Form A and B. Supplied with: Clamping nut Optional extras: Pull studs PS No. 308600 308806, PS wrench No. 308820, 308835, OZ collets No. 309540 309565, Hook wrench No. 628400. Concentricity: 3 um Overhang dimension A: 70 mm External Dia D: 60 mm Spare clamping nut No. 309670: 2 25 Suitable C-hook pin wrench No. 628400: 58 / 62
