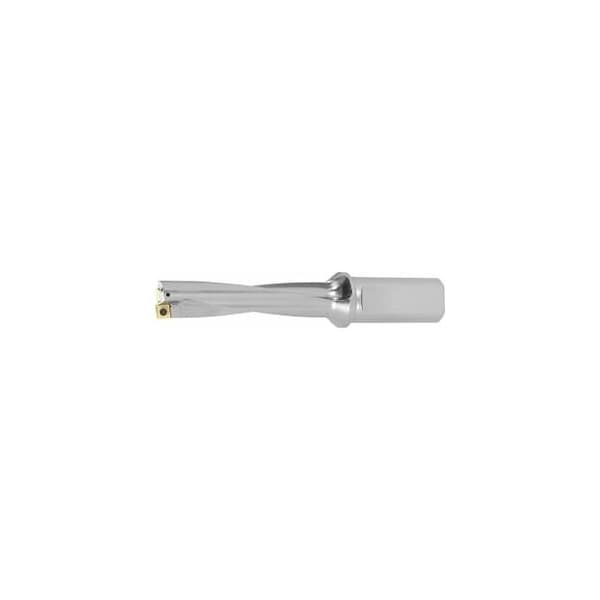

Power Drill Indexable Drill, 4XD, Diameter: 35.5 mm
Mfr # 234010 35,5
Zoro # G815355491
product price:Â
$
770.99
/ea
Free Shipping & Returns
Key Features
Diameter
35.5 mm
Series
Power Drill
Max. Adjustment Limit
0.25 mm
Reach Length
128 mm
Shank Length
68 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 234010 35,5
- Zoro #
- G815355491
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Diameter
- 35.5 mm
- Reach Length
- 128 mm
- Shank Length
- 68 mm
- Depth Limit (Indexable Drill)
- 4 x D
- Size
- 32
Details
- Item
- Indexable Drill
- Series
- Power Drill
- Max. Adjustment Limit
- 0.25 mm
- No. of Cutting Edges
- 1
- Coolant Through
- Yes
- Machining Strategy
- HPC
- Point Angle
- 180 Deg
- Overhang
- 152 mm
- Shank
- ISO 9766
Description
The helical coolant ducts ensure very high stability, since they do not weaken the core of the drill. Bore tolerance: -0.1 / +0.35 mm Description: For maximum performance and dimensional accuracy. Even for very difficult drilling situations up to 5xD. Suitable for: Inserts SOGX 110509. Note: Other intermediate sizes in 1/10 increments available on request. Overhang LA: 170 mm Shank 0 Ds: 40 mm Shank length Ls: 68 mm Maximum adjustment limit Vmax: 0.25 mm ISO code indexable insert: SOGX 110509 Pack of insert screws: 239700 15IP 2.8 Nm
