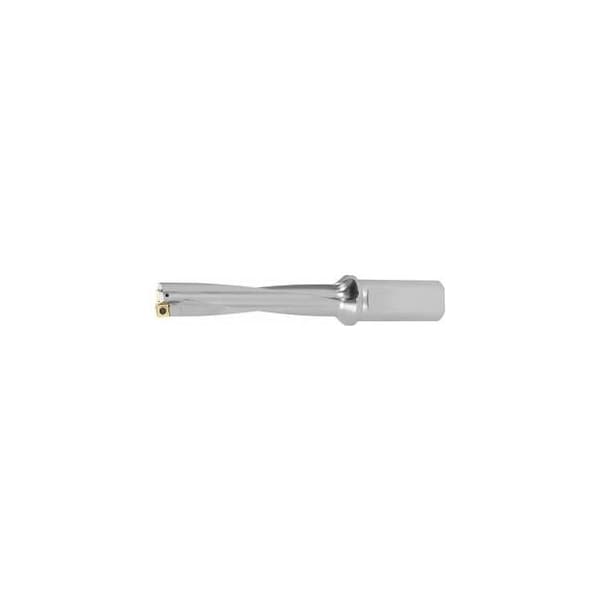

Power Drill Indexable Drill, 5XD, Diameter: 36 mm
Mfr # 234015 36
Zoro # G515355371
product price: $831.99
/ea
Free Shipping & Returns
Key Features
Diameter
36 mm
Series
Power Drill
Depth Limit (Indexable Drill)
4 x D
Size
37
Overhang
175 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
234015 36
Zoro #
G515355371
UPC #
-
Country of Origin
Germany
Dimensions
Diameter
36 mm
Depth Limit (Indexable Drill)
4 x D
Size
37
Reach Length
148 mm
Shank Length
68 mm
Details
Item
Indexable Drill
Series
Power Drill
Overhang
175 mm
Max. Adjustment Limit
0.25 mm
No. of Cutting Edges
1
Machining Strategy
HPC
Shank
ISO 9766
Coolant Through
Yes
Point Angle
180 Deg
Description
The helical coolant ducts ensure very high stability, since they do not weaken the core of the drill. Bore tolerance: -0.1 / +0.35 mm Description: For maximum performance and dimensional accuracy. Even for very difficult drilling situations up to 5xD. Suitable for: Inserts SOGX 110509. Recommendation: When spot-drilling reduce the feed rate to 70%. Note: Other intermediate sizes in 1/10 increments available on request. Overhang LA: 206 mm Shank 0 Ds: 40 mm Shank length Ls: 68 mm Maximum adjustment limit Vmax: 0.25 mm ISO code indexable insert: SOGX 110509 Pack of insert screws: 239700 15IP 2.8 Nm
