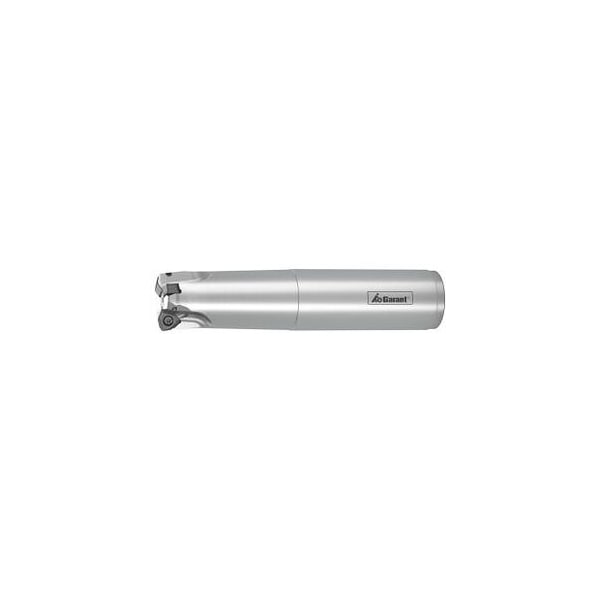

Power Q Double High Feed Rate Milling Cutter, with Plain Shank, 25mm Diameter, 2 Inserts
Mfr # 213002 25/2
Zoro # G216121053
product price:Â $344.99
/ea
Free Shipping & Returns
Key Features
Series
Power Q
Cutting Angle
15°
Shank Dia.
25 mm
Overall Length
150 mm
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
213002 25/2
Zoro #
G216121053
UPC #
-
Country of Origin
Italy
Dimensions
Shank Dia.
25 mm
Overall Length
150 mm
Cutting Dia.
25 mm
Ramping Length for αmax
12.55 mm
Diameter 3
15 mm
Details
Item
Copy mill
Series
Power Q
Cutting Angle
15°
Number of Teeth
2
Circular Interpolation Milling - Dmax
48 mm
Axial Rake Angle
-6°
Tool Exchange
PowerCard
Fz Helix
0.8
Shank Type
Plain shank
Circular interpolation milling ap
1.2 mm
Machining Strategy
HPC
Circular Interpolation Milling - Dmin
40 mm
Ramping Angle
2.74°
Coolant Through
Yes
Dia/No. of Cutting Edges
25 mm/2
Overhang
70 mm
Description
Version: Tool system with extremely stable embedding for the inserts for working to high process reliability. Tool geometries to reduce the cutting forces contribute significantly to reducing the load on the headstock. Spare part: Pack of insert screws No. 219799 7 10IP- 2.8Nm. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.8 with bit No. 674252 size 10IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D3: 15 mm Overhang L1: 70 mm Overall length Ltot: 150 mm ShankDs h6: 25 mm Circular interpolation millingDmin: 40 mm
