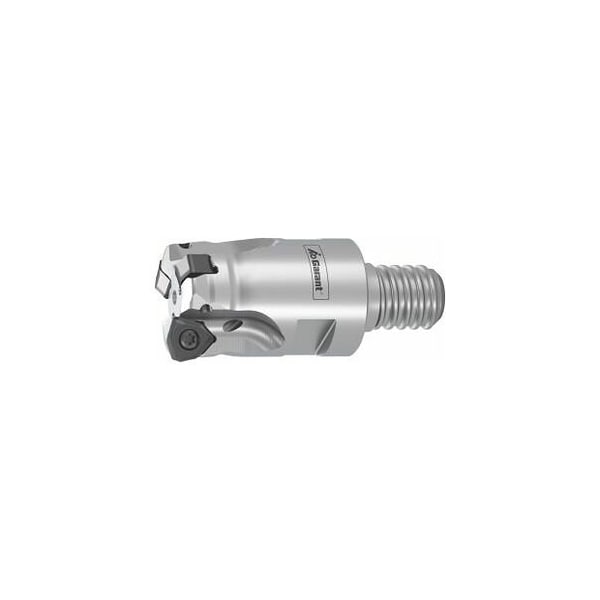

Power Q Double High Feed Rate Milling Cutter, with Threaded Shank, 40mm Diameter, 4 Inserts
Mfr # 213004 40/4
Zoro # G116120934
product price: $420.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
40 mm
Cutting Angle
15°
Series
Power Q
Number of Teeth
4
Overall Length
47 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
213004 40/4
Zoro #
G116120934
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
40 mm
Overall Length
47 mm
Ramping Length for αmax
27.55 mm
Free length
47 mm
Diameter 3
30 mm
Diameter 1
17 mm
Diameter 2
29 mm
Details
Cutting Angle
15°
Series
Power Q
Item
Copy mill
Number of Teeth
4
Coolant Through
Yes
Machining Strategy
HPC
Mounting Thread
M16
Axial Rake Angle
-6°
Shank Type
with threaded shank
Circular interpolation milling ap
1.2 mm
Ramping Angle
1.25°
Circular Interpolation Milling - Dmin
70 mm
Tool Exchange
PowerCard
Fz Helix
0.8
Dia/No. of Cutting Edges
40 mm/4
Circular Interpolation Milling - Dmax
78 mm
Description
Version: Tool system with extremely stable embedding for the inserts for working to high process reliability. Tool geometries to reduce the cutting forces contribute significantly to reducing the load on the headstock. Spare part: Pack of insert screws No. 219799 7 10IP- 2.8Nm. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.8 with bit No. 674252 size 10IP. When working with extensions- always use internal cooling. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D1 h6: 17 mmD2: 29 mmD3: 30 mm Overall length Ltot: 47 mm Mounting thread M: M16
