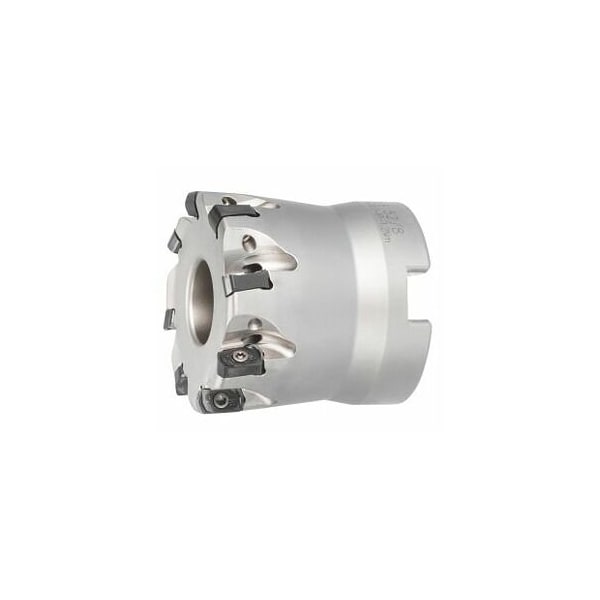

Power Q Mini High Feed Rate Milling Cutter, with Bore, 63mm Diameter, 7 Inserts
- Mfr # 213058 63/7
- Zoro # G416120979
product price:Â
$
584.99
/ea
Free Shipping & Returns
Key Features
Series
Power Q
Cutting Angle
20°
Cutting Dia.
63 mm
Number of Teeth
7
Overall Length
40 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213058 63/7
- Zoro #
- G416120979
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 40 mm
- Free length
- 40 mm
- Diameter 3
- 57 mm
- Mounting Bore Dia.
- 22 mm
- Ramping Length for αmax
- 55.4 mm
Details
- Item
- Copy mill
- Series
- Power Q
- Cutting Angle
- 20°
- Number of Teeth
- 7
- Shank Type
- with bore
- Tool Exchange
- PowerCard
- Circular interpolation milling ap
- 1 mm
- Machining Strategy
- HPC
- Ramping Angle
- 0.36°
- Coolant Through
- Yes
- Circular Interpolation Milling - Dmin
- 120 mm
- Fz Helix
- 0.8
- Circular Interpolation Milling - Dmax
- 124 mm
- Dia/No. of Cutting Edges
- 63 mm/7
- Axial Rake Angle
- -10°
Description
Version: High feed rate milling system for smaller machining diameters and greater operating depths. Particularly effective due to the large number of cutting edges. Spare part: Pack of insert screws No. 219799 9 7IP- 1.2Nm. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 7IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 7D3: 57 mm Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 120 mm Circular interpolation millingDmax: 124 mm
