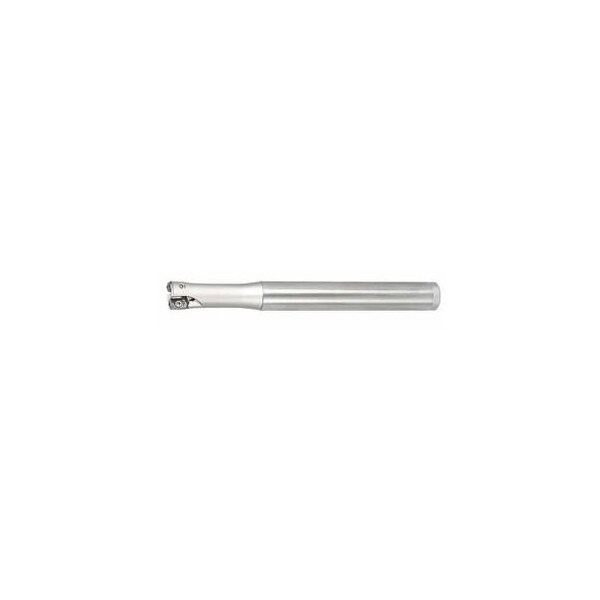

Power Q Mini High Feed Rate Milling Cutter, with Plain Shank, 16mm Diameter, 2L Inserts
- Mfr # 213054 16/2L
- Zoro # G916120974
product price:Â
$
265.99
/ea
Free Shipping & Returns
Key Features
Series
Power Q
Cutting Angle
20°
Overall Length
150 mm
Number of Teeth
2
Cutting Dia.
16 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213054 16/2L
- Zoro #
- G916120974
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 150 mm
- Cutting Dia.
- 16 mm
- Shank Dia.
- 16 mm
- Ramping Length for αmax
- 8.4 mm
- Diameter 3
- 10 mm
Details
- Item
- Copy mill
- Series
- Power Q
- Cutting Angle
- 20°
- Number of Teeth
- 2
- Dia/No. of Cutting Edges
- 16 mm/2L
- Circular Interpolation Milling - Dmin
- 26 mm
- Axial Rake Angle
- -10°
- Overhang
- 50 mm
- Ramping Angle
- 2.39°
- Machining Strategy
- HPC
- Circular interpolation milling ap
- 1 mm
- Shank Type
- Plain shank
- Coolant Through
- Yes
- Fz Helix
- 0.8
- Circular Interpolation Milling - Dmax
- 30 mm
- Tool Exchange
- PowerCard
Description
Version: High feed rate milling system for smaller machining diameters and greater operating depths. Particularly effective due to the large number of cutting edges. Spare part: Pack of insert screws No. 219799 9 7IP- 1.2Nm. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 7IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D3: 10 mm Overhang L1: 50 mm Overall length Ltot: 150 mm ShankDs h6: 16 mm Circular interpolation millingDmin: 26 mm
