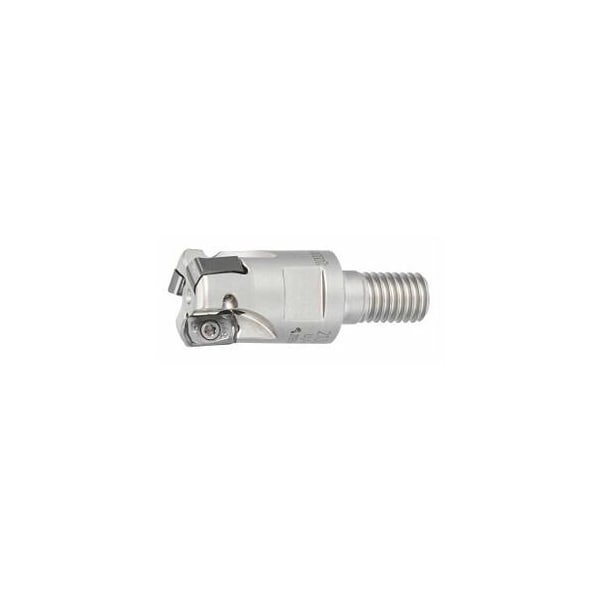

Power Q Mini High Feed Rate Milling Cutter, with Threaded Shank, 25mm Diameter, 4 Inserts
Mfr # 213056 25/4
Zoro # G116121009
product price:Â
$
331.99
/ea
Free Shipping & Returns
Key Features
Series
Power Q
Cutting Angle
20°
Cutting Dia.
25 mm
Overall Length
35 mm
Number of Teeth
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213056 25/4
- Zoro #
- G116121009
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 25 mm
- Overall Length
- 35 mm
- Diameter 1
- 12.5 mm
- Ramping Length for αmax
- 17.4 mm
- Diameter 2
- 21 mm
- Free length
- 35 mm
- Diameter 3
- 19 mm
Details
- Item
- Copy mill
- Series
- Power Q
- Cutting Angle
- 20°
- Number of Teeth
- 4
- Tool Exchange
- PowerCard
- Axial Rake Angle
- -10°
- Ramping Angle
- 1.15°
- Circular Interpolation Milling - Dmin
- 44 mm
- Circular Interpolation Milling - Dmax
- 48 mm
- Machining Strategy
- HPC
- Mounting Thread
- M12
- Shank Type
- with threaded shank
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 25 mm/4
- Circular interpolation milling ap
- 1 mm
- Fz Helix
- 0.8
Description
Version: High feed rate milling system for smaller machining diameters and greater operating depths. Particularly effective due to the large number of cutting edges. Spare part: Pack of insert screws No. 219799 9 7IP- 1.2Nm. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 7IP. When working with extensions- always use internal cooling. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D1 h6: 12.5 mmD2: 21 mmD3: 19 mm Overall length Ltot: 35 mm Mounting thread M: M12
