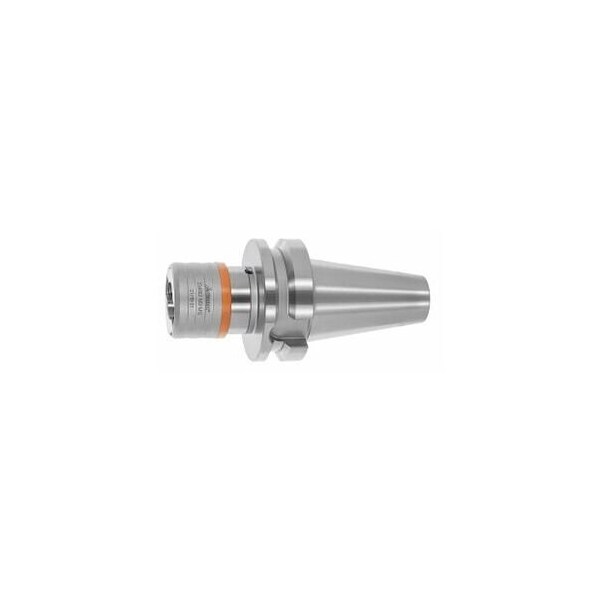

Quick-Change Tapping Chuck, BT 40, Tapping Range: M3-12
Mfr # 334663 M3-12
Zoro # G514777037
product price: $267.99
/ea
Free Shipping & Returns
Key Features
Taper Size
BT40
Internal Dia.
19 mm
Length Compensation By Compression
7.5 mm
Tapping Range
M3 − M12
Projection
68 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
334663 M3-12
Zoro #
G514777037
UPC #
-
Country of Origin
Italy
Dimensions
Taper Size
BT40
Internal Dia.
19 mm
Length Compensation By Compression
7.5 mm
Length Compensation By Tension
7.5 mm
Outside Dia.
38 mm
Details
Tapping Range
M3 − M12
Projection
68 mm
Item
Tapping head
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Arbor standard: ISO 7388-2 Length compensation by compression: 7.5 mm Length compensation by tension: 7.5 mm External Dia D: 38 mm Internal Dia D1: 19 mm Overhang dimension A: 68 mm
