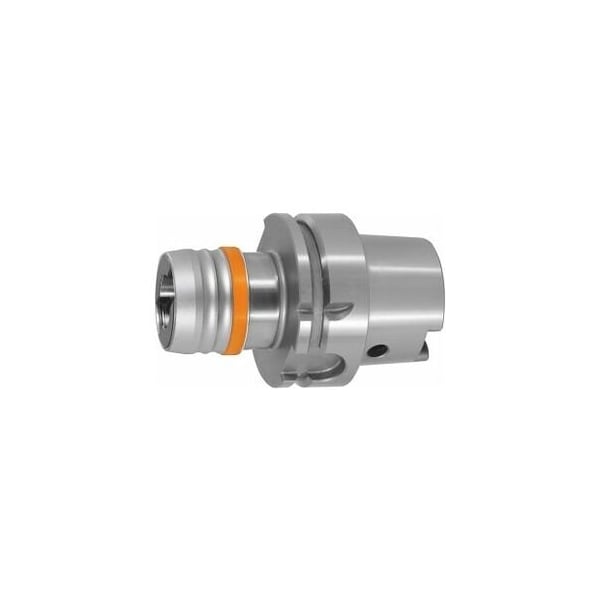

Quick-Change Tapping Chuck, HSK-A 63, Tapping Range: M3-12
Mfr # 334652 M3-12
Zoro # G014776981
product price:Â $545.99
/ea
Free Shipping & Returns
Key Features
Tapping Range
M3 − M12
Projection
72 mm
Outside Dia.
41 mm
Internal Dia.
19 mm
Taper Size
HSK63A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 334652 M3-12
- Zoro #
- G014776981
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Outside Dia.
- 41 mm
- Internal Dia.
- 19 mm
- Taper Size
- HSK63A
- Length Compensation By Compression
- 7.5 mm
- Length Compensation By Tension
- 7.5 mm
Details
- Tapping Range
- M3 − M12
- Projection
- 72 mm
- Item
- Tapping head
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. With ball bearing-mounted sleeve for smooth no-play length compensation. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Socket No. 309890. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Arbor standard: DIN 69893 Length compensation by compression: 7.5 mm Length compensation by tension: 7.5 mm External Dia D: 41 mm Internal Dia D1: 19 mm Overhang dimension A: 72 mm
