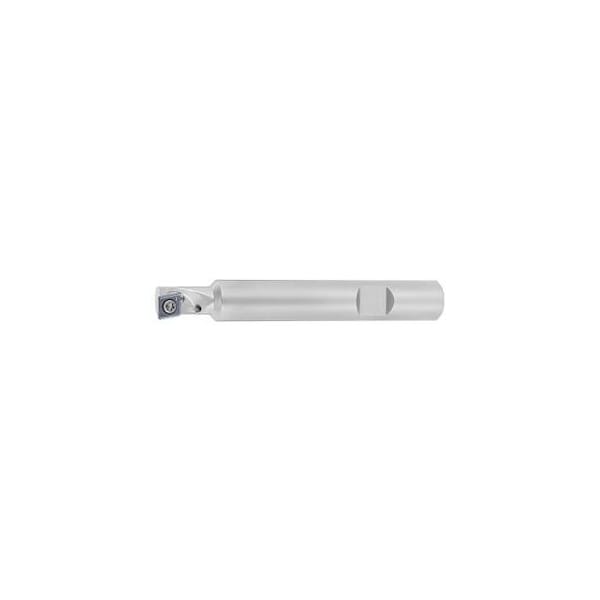

Radius Indexable Insert, 10mm Diameter, 1 Cutting Edge
- Mfr # 217160 10
- Zoro # G416121068
product price:Â
$
126.99
/ea
Free Shipping & Returns
Key Features
Overall Length
85 mm
Min. Dia.
4 mm
Countersink Diameter
10 mm
Tool Exchange
PowerCard
Number of Teeth
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 217160 10
- Zoro #
- G416121068
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 85 mm
- Min. Dia.
- 4 mm
- Countersink Diameter
- 10 mm
- Max. Drilling Depth
- 17 mm
- Shank Diameter
- 12 mm
Details
- Item
- Counterbores, countersinks
- Tool Exchange
- PowerCard
- Number of Teeth
- 1
- Shank Type
- Weldon shank
- Overhang
- 15 mm
- Dia
- 10 mm
- Countersink Angle
- 180°
- Insert Screw
- 219795 1 (8IP; 1.2 Nm)
- Coolant Through
- Yes
Description
Standard: DIN 974-1 Reihe 1 fur Zylinderkopf-DIN-Schrauben. Note: The recommended indexable inserts have a corner radius of 0.4 mm. If indexable inserts with a different larger corner radius are used- the dimensiondmin see table will not be achieved! Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Countersink angle: 180 degrees CountersinkD: 10 mm for DIN cylinder head screws: M5 Number of cutting edges Z: 1 Minimumdmin: 4 mm Overhang L1: 15 mm Overall length Ltot: 85 mm
